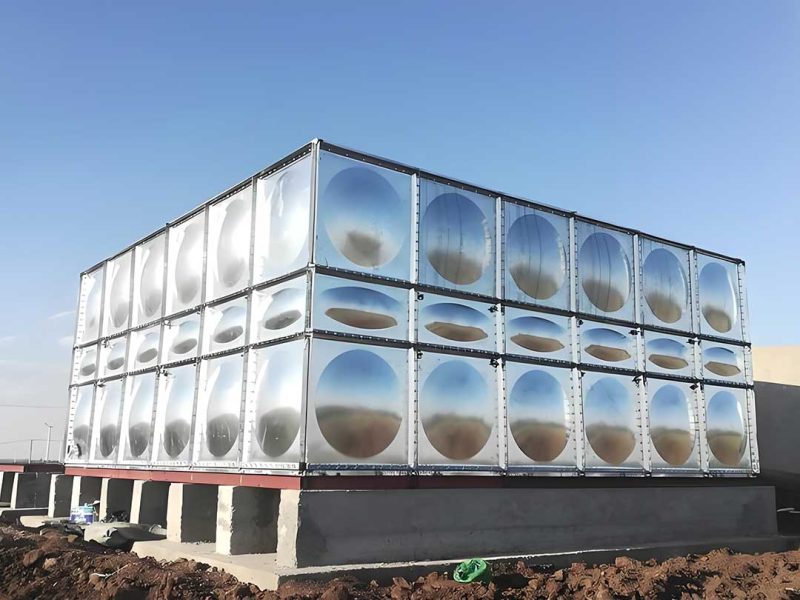

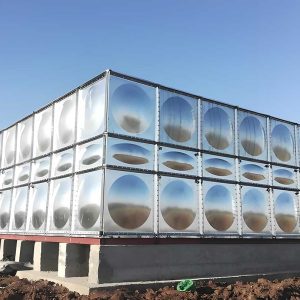

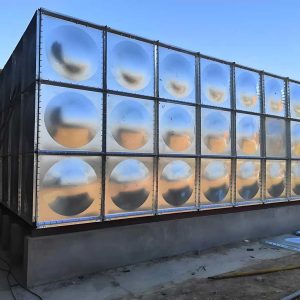

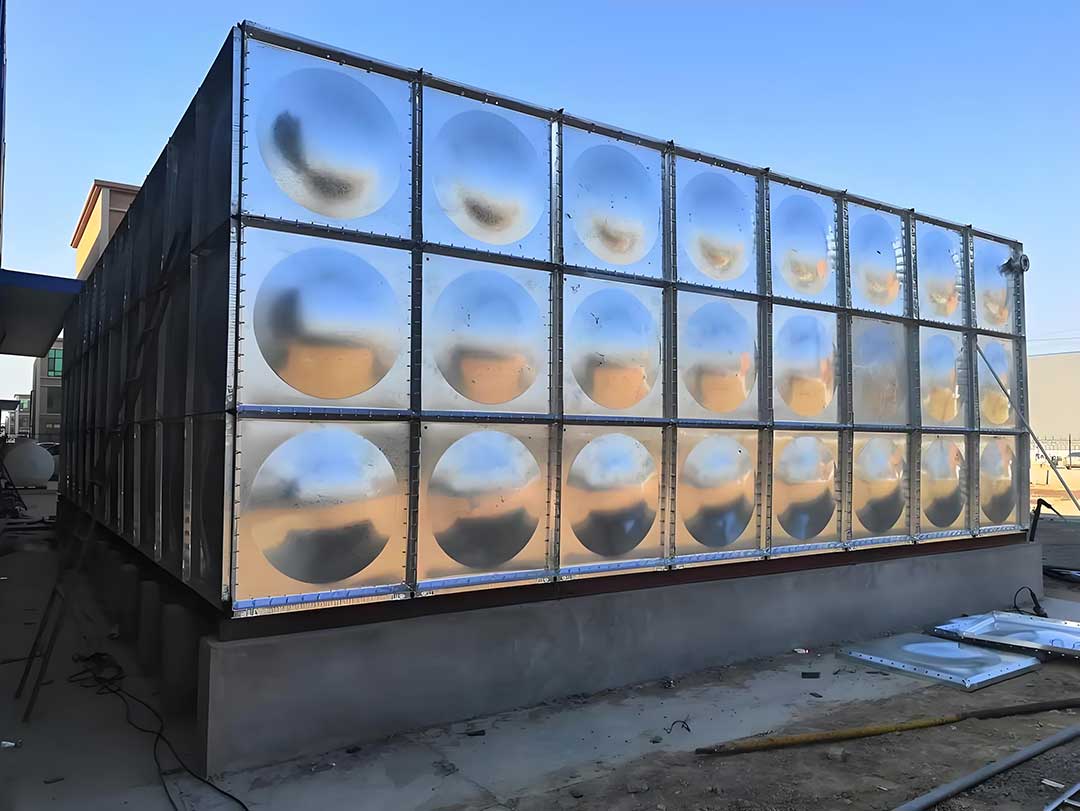

Hotel, School, and Hospital Domestic Water Storage Tank Solutions
Modular domestic water storage tanks for hotels, schools, and hospitals provide safe, stable, and hygienic water supply solutions. Designed for high-capacity daily use, they offer flexible installation, corrosion resistance, and reliable long-term performance.
Key Points Tag :

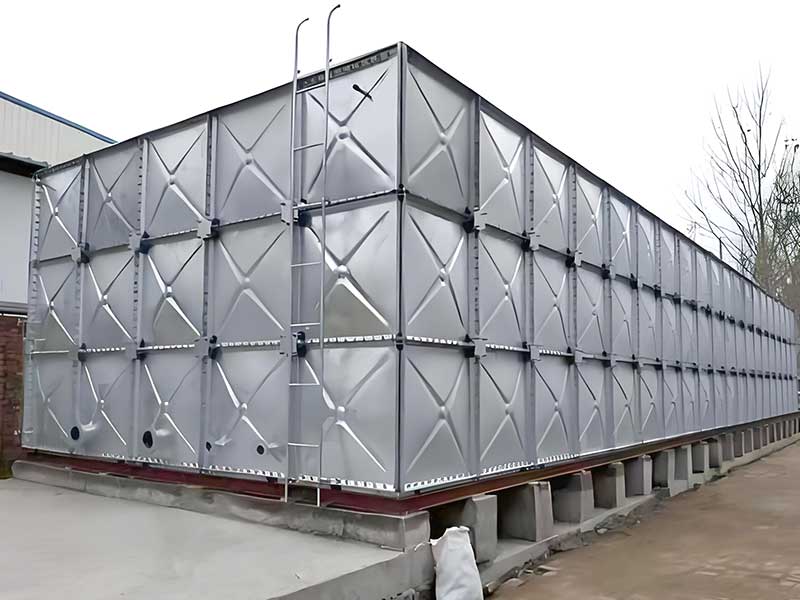

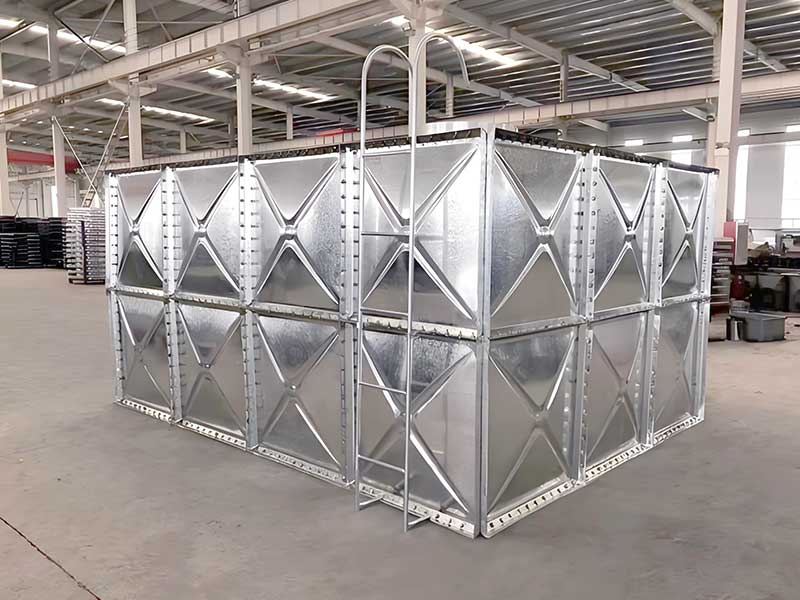

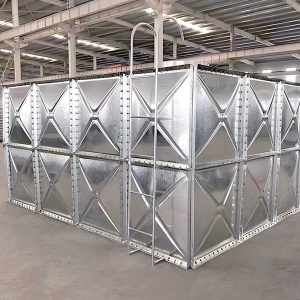

The galvanized steel water tank is manufactured from Q235A steel, pressed into standardized panels and assembled using bolted connections. Standard panel sizes include:1220 mm × 1220 mm,1000 mm × 1000 mm,1000 mm × 500 mm,500 mm × 500 mm.
Each panel is pre-drilled along the edges, and the joints between panels are sealed with silicone rubber gaskets, ensuring excellent watertight performance.

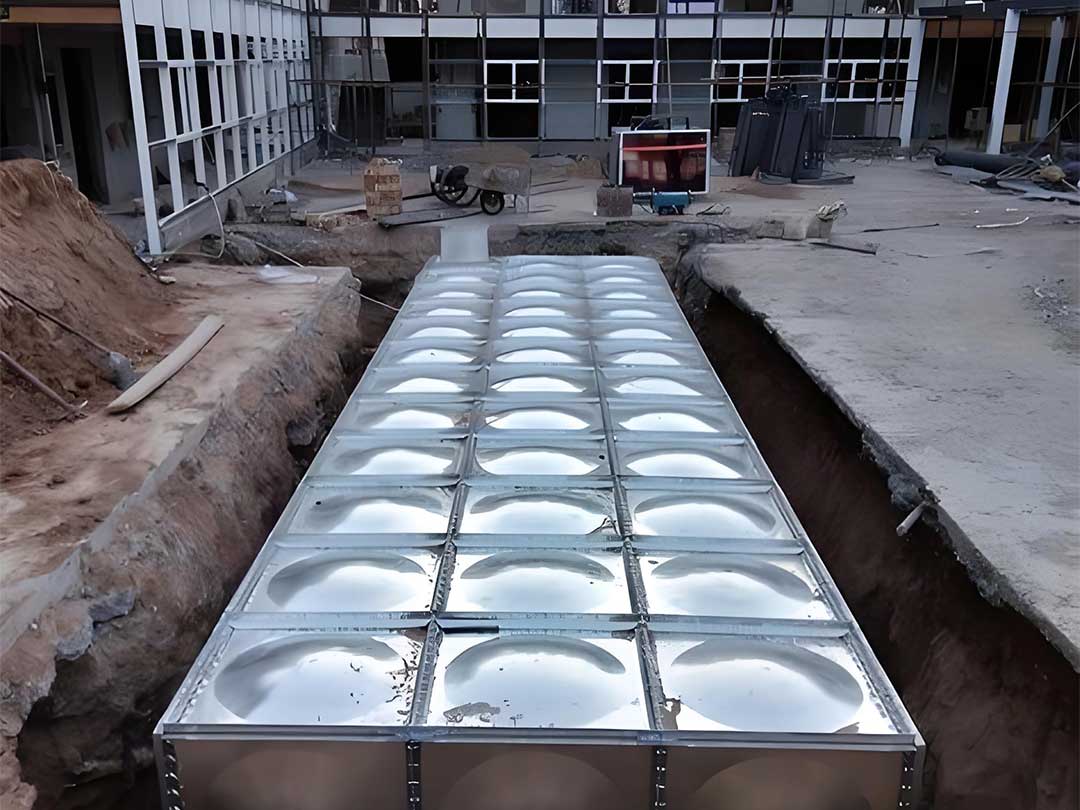

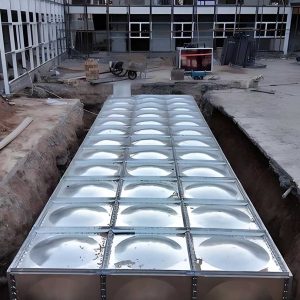

Hospitals have even stricter requirements for domestic water supply systems. In addition to daily domestic water usage, hospitals require water for medical cleaning, equipment operation, surgical areas, and emergency backup storage. Therefore, the water supply system must operate continuously and reliably 24 hours a day. Some hospitals adopt dual water tank backup systems and intelligent water level control systems to ensure uninterrupted water supply even under emergency conditions, providing safer and more reliable water storage solutions for medical environments.
Advantages of HDG Steel Panel Water Tanks:
- Low Maintenance Requirements
Thanks to the corrosion-resistant zinc coating, HDG water tanks require minimal maintenance. Regular inspections are typically sufficient, helping to reduce long-term maintenance costs and ensuring continued performance over time.
- Exceptional Corrosion Resistance
The zinc coating applied during the hot-dip galvanizing (HDG) process acts as a robust shield, protecting the steel from rust and corrosion. This significantly enhances the longevity of the HDG water tank compared to untreated mild steel, ensuring a longer service life.
- Strength of Steel, Durability of Zinc
HDG water tanks are designed to withstand heavy loads and high pressure. The added layer of zinc provides extra protection, making these tanks ideal for storing a variety of materials. Their combination of strength, affordability, and durability makes them a versatile and reliable solution for many storage applications.
Reference for Matching Water Tank Panel Thickness and Height Values
| Height | Bottom Board | Side 1 | Side 2 | Side 3 | Side 4 | Side 5 | Top board |
|---|---|---|---|---|---|---|---|
| 5000 mm | 5 mm | 5 mm | 5 mm | 4 mm | 3 mm | 2.5 mm | 2 mm |
| 4500 mm | 5 mm | 5 mm | 5 mm | 4 mm | 3 mm | 2.5 mm | 2 mm |
| 4000 mm | 5 mm | 5 mm | 4 mm | 3 mm | 2.5 mm | 2 mm | |
| 3500 mm | 4 mm | 4 mm | 3 mm | 3 mm | 2.5 mm | 2 mm | |
| 3000 mm | 4 mm | 4 mm | 3 mm | 3 mm | 2 mm | ||
| 2500 mm | 4 mm | 4 mm | 3 mm | 3 mm | 2 mm | ||
| 2000 mm | 3 mm | 3 mm | 3 mm | 2 mm | |||
| 1500 mm | 3 mm | 3 mm | 3 mm | 2 mm | |||
| 1000 mm | 3 mm | 3 mm | 2 mm |
- HDG panels are produced using standard molds. Common panel sizes include 1.22 × 1.22 m, 1.0 × 1.0 m, 1.0 × 0.5 m, and 0.5 × 0.5 m.
- The maximum tank height is 5 meters. If the height exceeds 5 meters, external I-beam reinforcement is required.
- Panel thickness ranges from 2-5 mm, depending on the tank’s design height and pressure resistance requirements.
- It can be used as an overhead water tank, underground water tank, or insulated water tank.
Water Tank Structure
- Panels (including base panels, wall panels, roof panels, and manhole covers);
- Internal components (including internal ladders, tie rods, support members, flanges, and rubber sealing gaskets);
- External components (including external ladders, angle irons, tie plates, bolts, and nuts);
- Foundation (concrete beams and I-beams).
Weight per Panel
| Item | 2 mm | 2.5 mm | 3 mm | 4 mm | 5 mm |
|---|---|---|---|---|---|
| 500 x 500 mm | 5.3 kg | 6.9 kg | 8 kg | 11 kg | 13.9 kg |
| 500 x 1000 mm | 9.5 kg | 12.5 kg | 14.6 kg | 19.9 kg | 25.2 kg |
| 1000 x 1000 mm | 17.4 kg | 22.7 kg | 26.6 kg | 36.2 kg | 46 kg |
| 1220 x 1220 mm | # | 33.6 kg | 39.3 kg | 53.7 kg | 68 kg |
Physical Properties
| Physical properties | Standard requirement | Result |
|---|---|---|
| Tensile strength | ≥350 MPa | 509 MPa |
| Yield strength | ≥220 MPa | 414 MPa |
| Elongation | ≥23% | 24% |
Applications of HDG Water Tanks:
- Water storage (rainwater, seawater, irrigation, water treatment)
- National, provincial, and state parks

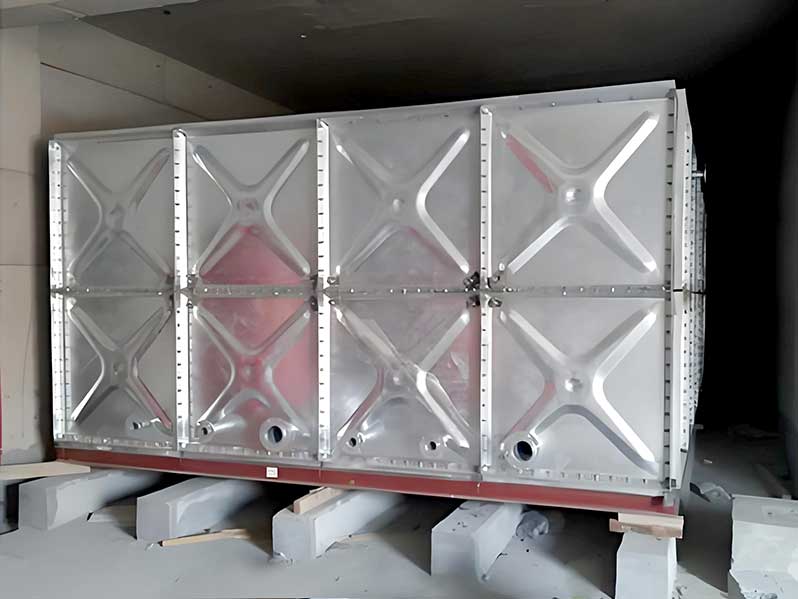

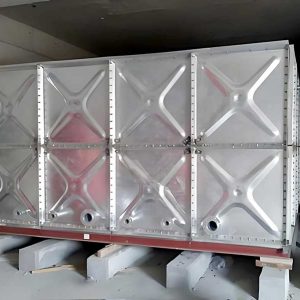

- Construction and fire-fighting water supply
- Water circulation systems
- Agricultural feeding operations
- Temporary water storage for heating system expansions
- Widely used across industries, mining, public institutions, restaurants, reclaimed water disposal, fire control, and various other facilities.
These tanks are versatile, durable, and efficient, making them suitable for a wide range of uses in various sectors.
| Material | Q235 |
|---|---|
| Grade | Food Grade |
| Origin | China |
| Color | Nickel white |
| Panel Size | 0.5*0.5m, 1.22*1.22m, 1*0.5m, 1*1m |
| Certification | ISO3834, ISO9001 |
| HS Code | 730990 |
| Capacity | 1000Litres -Infinity |
| Foundation | Concrete Foundation, U-Steel Bottom Bas |
| Installation | Sitting Type |
| Production Capacity | 2000Ton/Month |
| Transport Package | Pallet Box, Plywood Pallet, Steel Frame |
| Sample | Provided |
| After-Sale Service | Online Technical Support |
Be the first to review “Hotel, School, and Hospital Domestic Water Storage Tank Solutions”
Professional Design Capability
Packing & Shipping
- The products are packaged using iron frames or plywood boxes to ensure they are not damaged during land transportation and shipping.
- Each individual package is covered with a waterproof film to prevent exposure to moisture during long-term sea transportation.
- Accurately label all panels and accessories to facilitate quick installation by customers.
Water Tank Panel Packaging 1
Plywood Box
Water Tank Panel Packaging 2
Steel Frame Support
Water Tank Panel Packaging 3
HDG
Water Tank Panel Packaging 4
GRP/FRP
Large Components
Loose Packing
Small Accessories Packaging
Plywood Box
Full Container Shipment
Steel Frame Packaging
Full Container Shipment
Simple Packaging
Qualification & Certification
Our water tank products are designed and manufactured in strict accordance with domestic and international standards and have passed multiple industry-recognized certifications, including ISO 9001 Quality Management System certification, food-grade stainless steel material standards (SUS304 / SUS316), and drinking water safety-related certifications.
Delivery
- For standard water tank less than 200m3, it would be 3-5 days;
- For non-standard water tank and customized water tank according to client’s specific requirements, it would be 7 to 15 days.
- The final delivery time shall be subject to the actual order confirmation.
