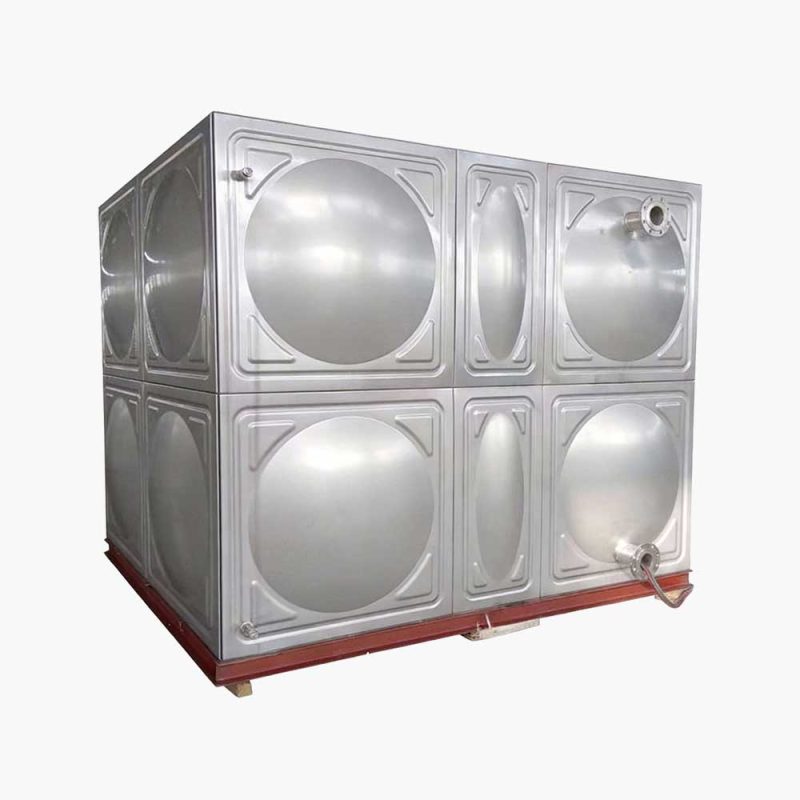

SS 304 316 Modular Welded Stainless Steel Water Tank

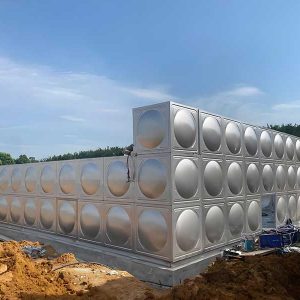

Large Sectional Modular Stainless Steel Water Tank – Welded Panel · Square Design

The large sectional modular stainless steel water tank is a Modular (Modular) square water storage system featuring a Sectional structure design, allowing flexible configuration of capacity and dimensions to meet different project requirements. This system is widely used in industrial, commercial, and municipal water storage projects, ideal for applications that require high structural strength and strict water hygiene standards.

The welded modular stainless steel water tank is made of high-quality SUS 304 or SUS 316 stainless steel panels (Panel System), suitable for storing both cold and hot potable water. All tank panels are connected using TIG welding (Tungsten Inert Gas Welding), either on-site or in the factory, forming an integrated, fully sealed tank structure that significantly enhances the system’s structural strength, hygiene, and leak-proof performance.

As a high-standard Modular Water Tank System, the welded stainless steel water tank offers the following key advantages:

Modular and Sectional design, facilitating transportation, handling, and on-site installation

Bolt-free internal design, reducing bacterial growth and meeting potable water hygiene standards

High-strength welded panel system (Welded Panel System), suitable for long-term stable operation

High installation efficiency, especially suitable for industrial and engineering projects with strict construction timelines

Note: The welded stainless steel water tank is not recommended for water with high chloride concentrations, as the welded areas may have reduced corrosion resistance under such conditions. For these applications, it is recommended to evaluate the stainless steel grade or consider an alternative tank structure and water storage solution.

Welded Water Tanks vs Bolted Water Tanks

• Welded Water Tanks: Suitable for high hygiene standards, high-pressure resistance, and long-term use. Fully welded structure ensures excellent sealing and minimal maintenance, but transportation and installation require professional equipment.

• Bolted Water Tanks: Ideal for flexible assembly, temporary projects, or budget-limited applications. Easy to install, but sealing and pressure resistance are slightly lower and require regular maintenance.

High-Quality Welded Stainless Steel Water Tanks – Traceable, Safe, and Reliable

Our welded stainless steel water tanks are manufactured from high-quality stainless steel panels, ensuring safety, durability, and stability. The chemical composition and mechanical properties fully comply with international standards.

Raw materials are sourced from leading stainless steel manufacturers, including major state-owned steel mills, providing stable quality and strong traceability. They are suitable for drinking water storage, industrial water applications, and other sectors requiring reliable water storage solutions.

Advantages of 304 Stainless Steel Welded Water Tanks

• Excellent corrosion resistance: Suitable for most potable water storage applications

• High hygiene standards: Easy to clean, ensuring safe drinking water

• Strong mechanical performance: Stable structure for long-term reliability

• Cost-effective: More economical compared to 316 stainless steel tanks

• Internationally recognized: Complies with multiple international standards

• Wide range of applications: Suitable for residential, commercial, and general industrial water storage

Advantages of 316 Stainless Steel Welded Water Tanks

• Superior corrosion resistance: Ideal for chloride-rich, salty, and marine environments

• Durable in harsh conditions: Performs exceptionally in coastal, high-humidity, and high-salt areas

• Pitting and crevice corrosion resistant: Molybdenum-enriched design enhances corrosion protection

• Industrial chemical applications: Can withstand severe industrial and chemical exposure

• Long service life: Maintains performance even in extreme conditions

• High-quality water storage: Suitable for premium drinking water and specialized industrial water use

Reference for Matching Water Tank Panel Thickness and Height Values:

Dimensions & Weight

Standard stainless steel panel sizes: 1.22 × 1.22 m, 1 × 1 m, 1 × 0.5 m, and 0.5 × 0.5 m.

Maximum tank height: 5 m (for heights exceeding 5 m, additional external reinforcement with C-channels is required).

Panel thickness varies with height, depending on the tank’s design height and pressure resistance requirements.

Standard Configuration of Rectangular Bolted Stainless Steel Sectional Water Tank:

• Panels (including bottom panel, wall panels, roof panel, and manhole cover);
• Internal Components (including internal ladder, tie rods, supports, flanges, and rubber seals);
• External Components (including external ladder, angle iron, tie plates, bolts, and nuts);
• Base (Concrete beam,C-channel steel).
