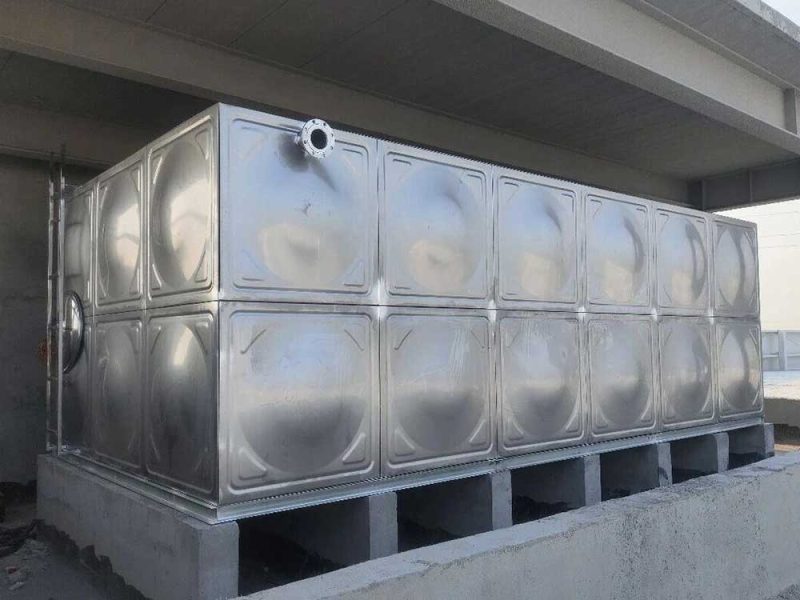

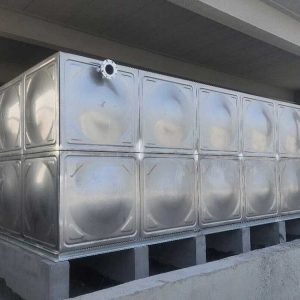

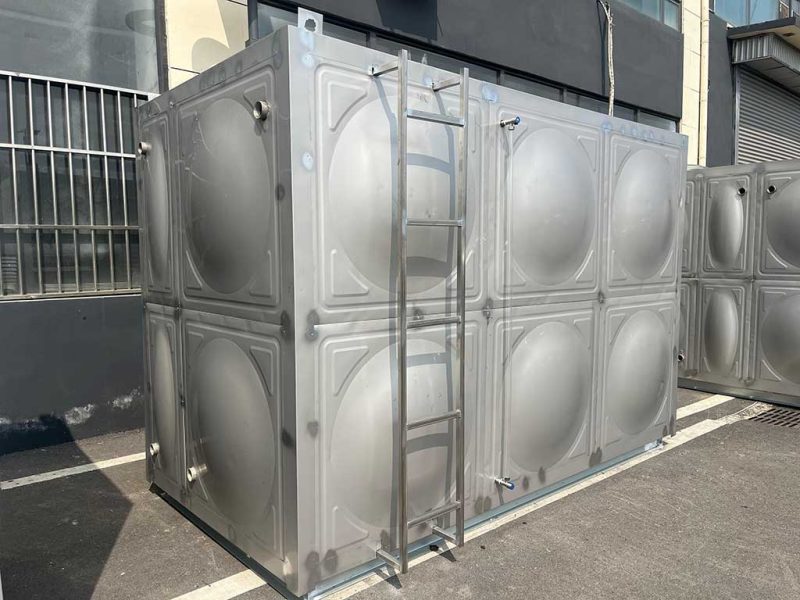

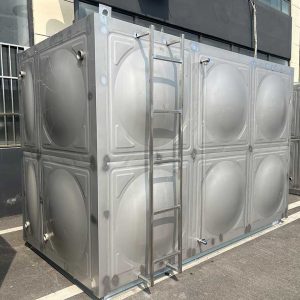

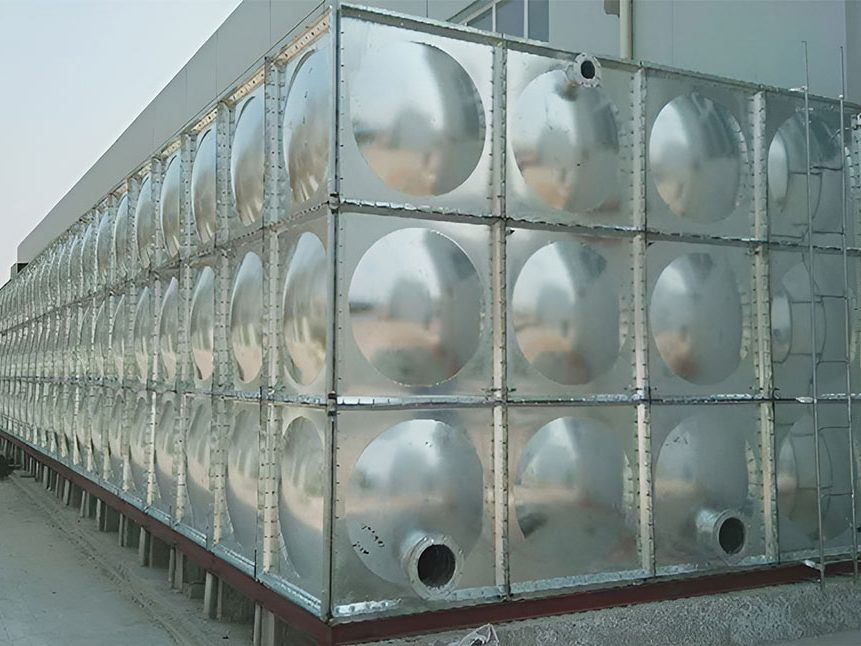

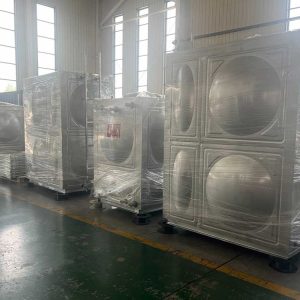

Modular Stainless Steel Welded Water Tank for Drinking Water

The tank is assembled from modular panels and welded on site, allowing the tank dimensions to be customized according to the available building space, required storage capacity, and project specifications. Compared with conventional one-piece tanks, the modular design is particularly suitable for large buildings, commercial facilities, food processing plants, and public water supply projects.

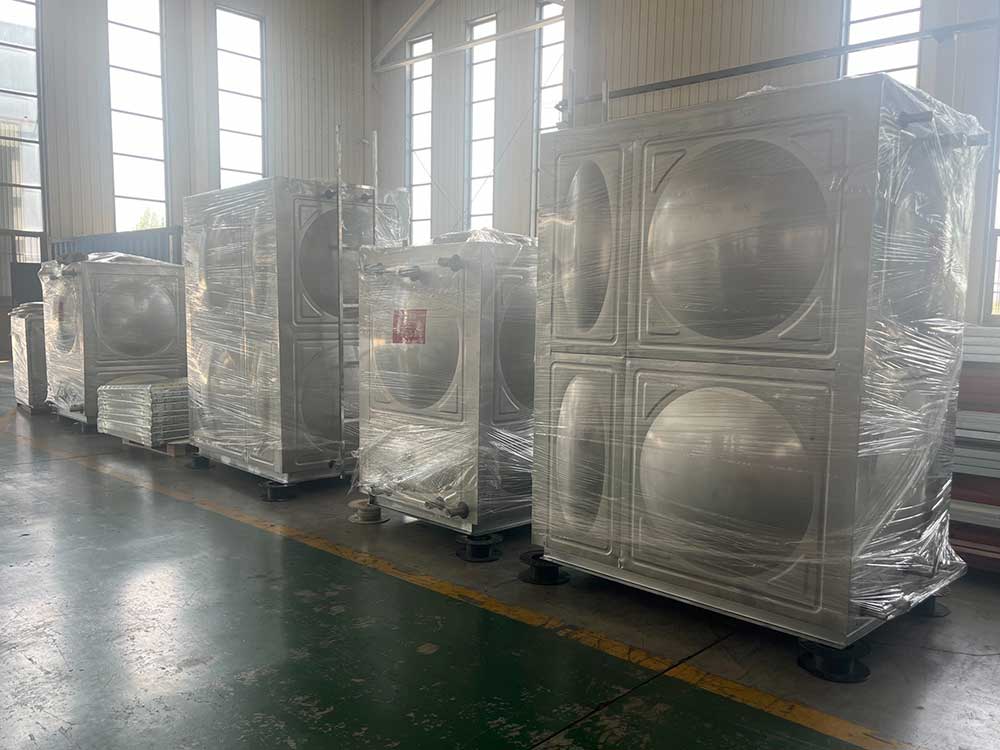

Food-Grade Stainless Steel Materials

Drinking water storage requires high-quality materials for the tank’s internal surfaces. The tank is generally manufactured using food-grade SUS304 or SUS316 stainless steel. Compared with conventional carbon steel or non-food-grade storage materials, stainless steel offers excellent corrosion resistance and hygienic performance.

After the tank panels are assembled on site, they are welded together to form a continuous and sealed structure. For drinking water storage applications, welding quality directly affects the tank’s sealing performance and long-term stability. Therefore, necessary inspections and a full-water leakage test should be carried out after welding to verify the integrity of the tank.

Stainless Steel Water Tank Panel Installation Methods

Welded Water Tank:
Welded tanks are suitable for applications requiring high hygiene standards, strong structural integrity, and long-term use. The welded structure provides reliable sealing and long-term stability, while smooth internal weld seams are easier to clean and maintain. Large welded tanks are generally designed for permanent installations and are not intended to be relocated after installation. Smaller tanks, however, can be lifted and relocated when necessary.

Bolted Water Tank:
Bolted tanks are particularly suitable for flexible assembly and temporary projects. They generally require a simpler installation process and can be disassembled and relocated more easily. However, their sealing and pressure resistance are generally lower than those of fully welded tanks.

Cold Water and Insulation Options

Stainless steel water tanks can be used for both cold water and hot water storage. An insulation layer can be added according to project requirements to reduce heat loss. The tank can also be equipped with temperature sensors, heating equipment, and other functional components for water temperature monitoring and control. These options help provide a stable and reliable water storage solution for residential, commercial, and industrial applications with different temperature and water supply requirements.

Applications for Drinking Water Storage

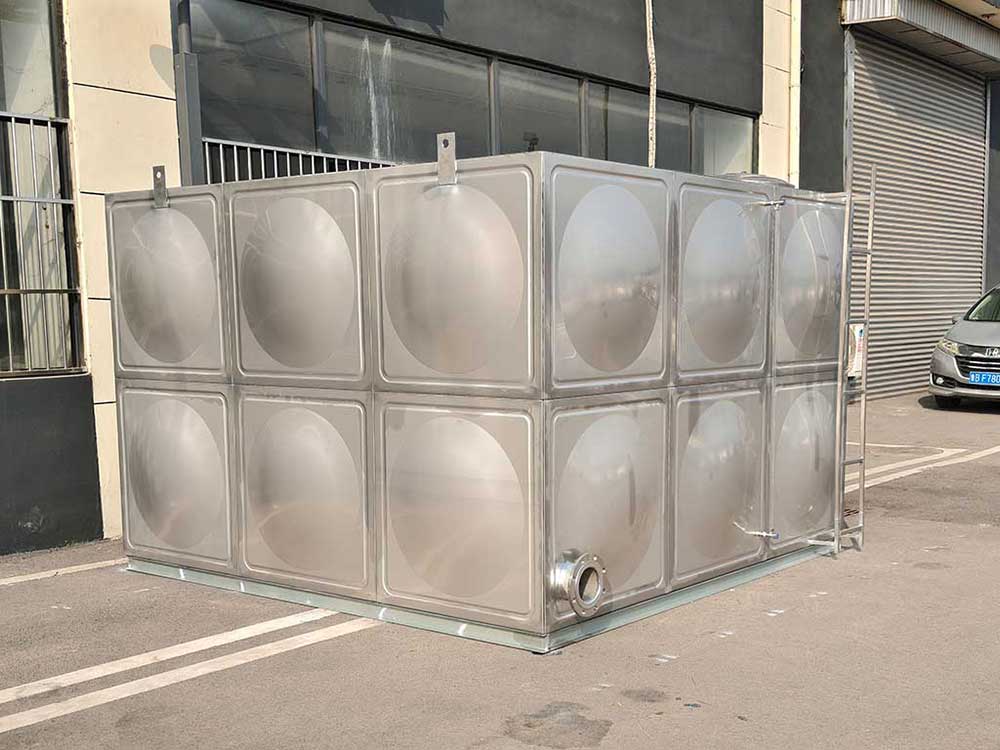

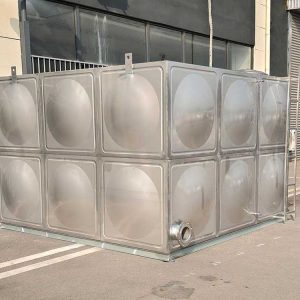

1. Hotels and Apartments

Hotels, apartment buildings, and large residential developments often require reliable domestic water storage systems. Stainless steel welded water tanks can be used to store treated domestic or drinking water and can be integrated with the building’s water supply system.

2. Hospitals and Healthcare Facilities

Hospitals and healthcare facilities have strict requirements for water hygiene and storage system reliability. Stainless steel water tanks can be used for domestic water, purified water, and other water sources requiring hygienic storage conditions.

3. Schools and Universities

Schools, universities, and educational institutions require a stable water supply for large numbers of students and staff. Modular stainless steel water tanks can be customized according to the available installation space and required water storage capacity.

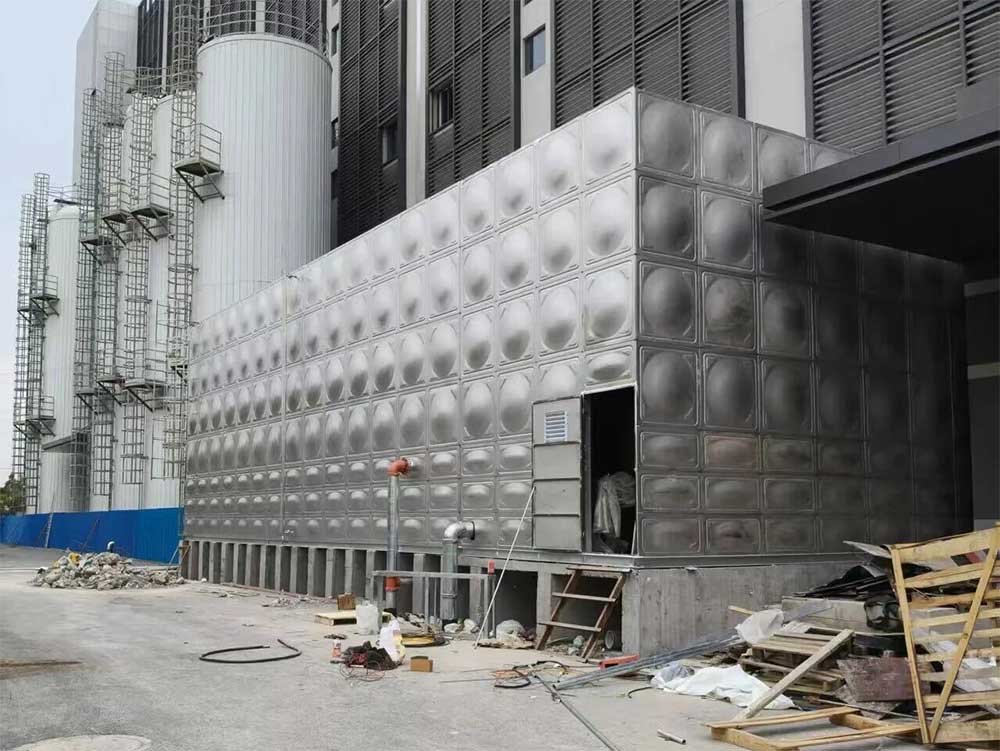

4. Food and Beverage Processing Plants

Food processing, beverage production, and other food industry facilities have high requirements for the hygiene of process water. Food-grade stainless steel water tanks can be used to store treated process water, production water, or domestic water.

5. Residential and Commercial Buildings

Shopping centers, office buildings, residential developments, and large mixed-use complexes can use modular stainless steel water tanks as part of their domestic water supply systems.

6. Drinking Water Treatment Projects

In water purification, filtration, RO reverse osmosis, and other water treatment systems, stainless steel water tanks can serve as intermediate storage tanks or treated water storage tanks.

7. Public Water Supply and Large-Scale Projects

For public buildings and large-scale projects requiring substantial water storage capacity, the modular design helps overcome transportation limitations and allows the tank to be assembled and welded directly at the project site.

Stainless Steel Water Tank Installation Guide

304 vs. 316 Stainless Steel Comparison

Key Indicator	304 Stainless Steel	316 Stainless Steel
Material	SUS304 / AISI 304	SUS316 / AISI 316
Food-Grade Applications	✓ Suitable for food and drinking water storage	✓ Suitable for food and drinking water storage
Main Composition	Chromium, Nickel	Chromium, Nickel, Molybdenum
Corrosion Resistance	Excellent for general environments	Superior, especially against chloride corrosion
Applications	Drinking water, domestic water, hotels, schools, food factories, etc.	Coastal and high-salt environments, food processing, chemical and specialized industrial projects, etc.
Cost	Lower and more cost-effective	Higher, suitable for demanding environments

Dimensions & Weight

Standard stainless steel panel sizes: 1 × 1 m, 1 × 0.5 m, and 0.5 × 0.5 m.

Maximum tank height: 5 m (for heights exceeding 5 m, additional external reinforcement with C-channels is required).

Panel thickness varies with height, depending on the tank’s design height and pressure resistance requirements.

Reference for Matching Water Tank Panel Thickness and Height Values:

Standard Configuration of Rectangular Bolted Stainless Steel Sectional Water Tank:

• Panels (including bottom panel, wall panels, roof panel, and manhole cover);
• Internal Components (including internal ladder, tie rods, supports, flanges, and rubber seals);
• External Components (including external ladder, angle iron, tie plates, bolts, and nuts);
• Base (Concrete beam,C-channel steel).
