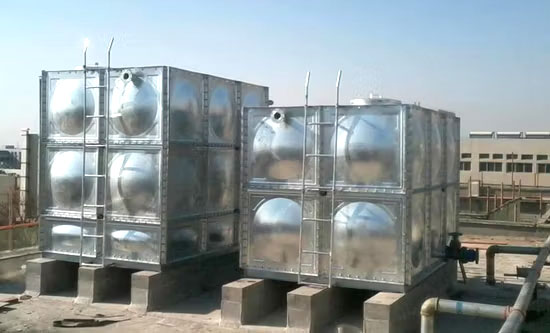

Customized Stainless Steel Water Storage Tank Manufacturer | SS 304 316
The stainless steel water tank is assembled from food-grade stainless steel sheets in a modular fashion.
It features hygiene, safety, corrosion resistance, and long service life, and its overall performance is superior to that of galvanized water tanks.
Key Points Tag :

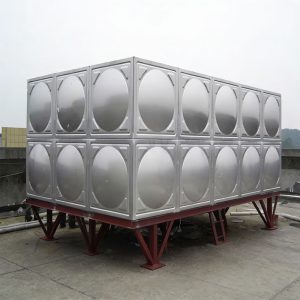

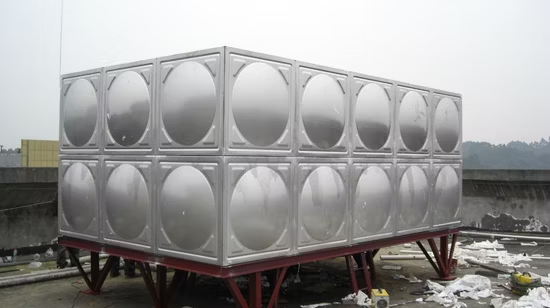

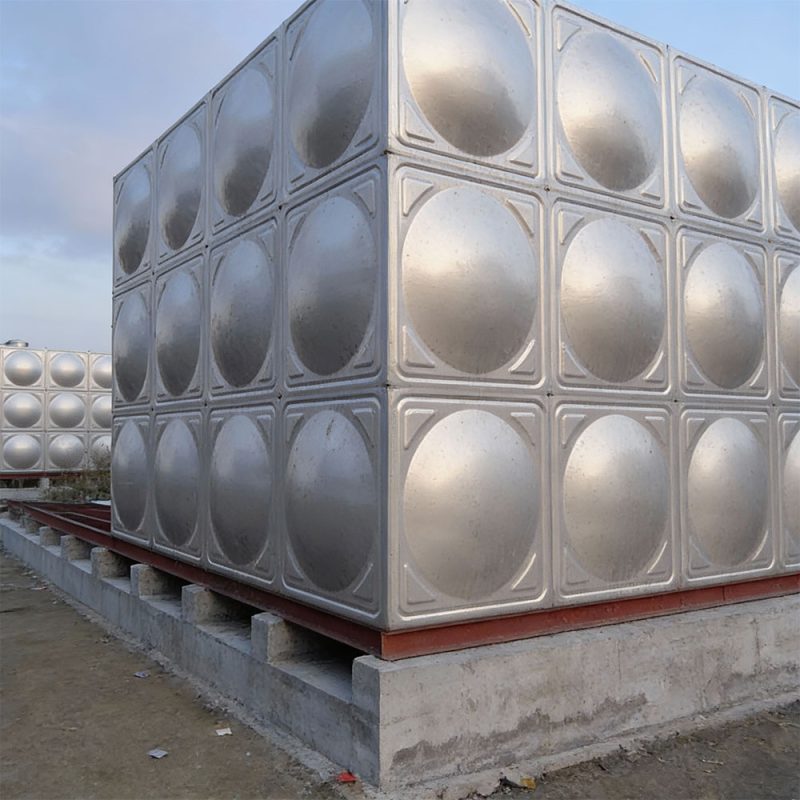

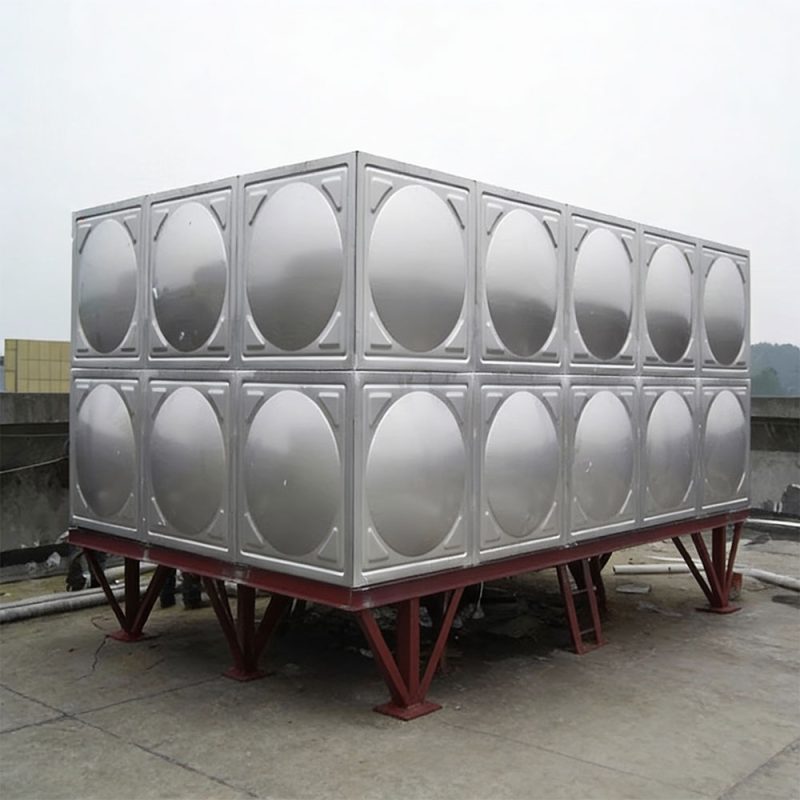

Rectangular Stainless Steel Water Tank – Custom Water Storage Tank
Stainless steel water tanks are made from high-quality, food-grade stainless steel using advanced CNC stamping technology. They are custom-designed to meet customer requirements, offering flexibility in size and easy assembly. These tanks are known for their excellent sanitation, corrosion resistance, lightweight construction, and attractive appearance. Additionally, their superior sealing performance ensures effective cleaning and prevents secondary contamination. As a result, they are a modern alternative to traditional cement, steel, or glass water tanks.
Modular stainless steel water tanks consist of individual stainless steel panels that are connected together by bolts or welding. This design makes assembly, disassembly, and transportation easy, which is particularly useful for temporary or mobile water storage. These tanks are commonly used in residential, commercial, and industrial settings to store drinking water, as stainless steel is non-reactive, resistant to bacterial growth, and ensures clean water.
Modular stainless steel tanks also offer environmental benefits, as the material is 100% recyclable, minimizing waste and reducing environmental impact at the end of the tank’s life cycle.
Overall, modular stainless steel water tanks are durable, versatile, and sustainable, providing a reliable long-term solution for water storage in various applications. There are two main types: welding-type and bolted-type tanks.
Applications of Stainless Steel Water Tanks
- Potable Water Storage Tanks
- Agricultural Irrigation Tanks
- Septic and Sewage Tanks
- Distillation and Process Tanks
- Fire Reserve and Swimming Pool Balance Tanks
- Hot Water Storage and Chemical Substance Tanks
- Rainwater Harvesting Tanks, Well Water Tanks, Sea Water Tanks
- Reverse Osmosis Water Tanks (for water with high or low conductivity)
- Industrial Process Tanks, Chiller Water Tanks, Cooling Tower Tanks
Modular Stainless Steel Water Tank Advantages
-
Superior Raw Materials The stainless steel stamping corner plate features a simple, convenient polished surface that prevents dirt buildup, making future cleaning easier. The panels are made from high-quality materials (stainless steel or galvanized steel), which are more durable and cost-effective compared to FRP (Fiberglass Reinforced Plastic).
-
Better Pressure Performance The high-strength punched plates and the uniform distribution of stainless steel tension within the box ensure an even and reasonable pressure distribution, enhancing the overall pressure resistance.
-
Easier Installation Standard stamped plates can be freely combined, assembled, and welded on-site without the need for lifting equipment, simplifying the installation process.
-
Higher Stability The water tank, formed by high-temperature and high-pressure mechanical pressing of the panels, exhibits excellent pressure resistance, increasing the tank’s capacity and ensuring a service life of over 20 years.
Water Tank Structure
-
Panels (including bottom panel, wall panels, roof panel, and manhole cover);
-
Internal Components (including internal ladder, tie rods, supports, flanges, and rubber seals);
-
External Components (including external ladder, angle iron, tie plates, bolts, and nuts);
-
U-steel Base (surface treatment options include paint, hot-dip galvanization, or stainless steel).
Tank Height and Panel Thickness Design Reference
| Height | Bottom Board | Side 1 | Side 2 | Side 3 | Side 4 | Side 5 | Top board |
|---|---|---|---|---|---|---|---|
| 1000 mm | 2.5 mm | 1.5 mm | 1.5 mm | ||||
| 1500 mm | 2.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | |||
| 2000 mm | 2.5 mm | 2 mm | 1.5 mm | 1.5 mm | |||
| 2500 mm | 3 mm | 2.5 mm | 2 mm | 1.5 mm | 1.5 mm | ||
| 3000 mm | 3 mm | 2.5 mm | 2 mm | 1.5 mm | 1.5 mm | ||
| 3500 mm | 3 mm | 3 mm | 2.5 mm | 2 mm | 1.5 mm | 1.5 mm | |
| 4000 mm | 3 mm | 3 mm | 2.5 mm | 2 mm | 1.5 mm | 1.5 mm | |
| 4500 mm | 4 mm | 3 mm | 3 mm | 2.5 mm | 2 mm | 1.5 mm | 1.5 mm |
| 5000 mm | 4 mm | 3 mm | 3 mm | 3 mm | 2.5 mm | 2 mm | 1.5 mm |
Accessories
-
Bolt nut & washers stainless steel 304 material.
-
Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
-
Covers the tank cover shall be constructed from 3mm to 5mm of thickness steel 304 material according to the requirement.
-
Ladders and Level Indicator. Internal & external ladder shall be made of stainless steel grade 304 material.
Instructions
-
Only hold water for life or fire water. Not hold hydrochloric acid,
-
sulfuricacid,acid or alkaline liquid.
-
The water tank regular cleaning and disinfection 1-2 times a year.
| Product Name | Stainless Steel Water Tank |
|---|---|
| Material | SUS201, SUS304, SUS316 |
| Grade | Food Grade |
| Origin | China |
| Color | Nickel white |

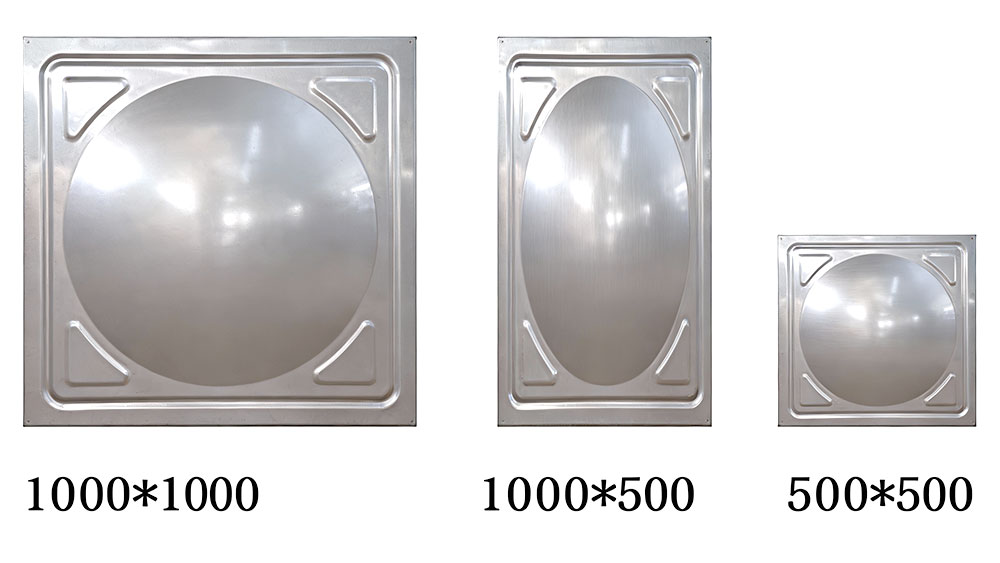

| Panel Size | 0.5*0.5m, 1*0.5m, 1*1m, 2*1m |
| Panel thickness | From 5mm to 24mm |
| Certification | ISO3834, ISO9001 |
| HS Code | 730990 |
| Capacity | 1000Litres -Infinity |
| Foundation | Concrete Foundation, U-Steel Bottom Bas |
| Installation | Sitting Type, Welding |
| Production Capacity | 2000Ton/Month |
| Transport Package | Pallet Box, Plywood Pallet, Steel Frame |
| Sample | Provided |
| After-Sale Service | Online Technical Support |
1 review for Customized Stainless Steel Water Storage Tank Manufacturer | SS 304 316
Add a review
Professional Design Capability
Packing & Shipping
- The products are packaged using iron frames or plywood boxes to ensure they are not damaged during land transportation and shipping.
- Each individual package is covered with a waterproof film to prevent exposure to moisture during long-term sea transportation.
- Accurately label all panels and accessories to facilitate quick installation by customers.
Water Tank Panel Packaging 1
Plywood Box
Water Tank Panel Packaging 2
Steel Frame Support
Water Tank Panel Packaging 3
HDG
Water Tank Panel Packaging 4
GRP/FRP
Large Components
Loose Packing
Small Accessories Packaging
Plywood Box
Full Container Shipment
Steel Frame Packaging
Full Container Shipment
Simple Packaging
Qualification & Certification
Our water tank products are designed and manufactured in strict accordance with domestic and international standards and have passed multiple industry-recognized certifications, including ISO 9001 Quality Management System certification, food-grade stainless steel material standards (SUS304 / SUS316), and drinking water safety-related certifications.
Delivery
- For standard water tank less than 200m3, it would be 3-5 days;
- For non-standard water tank and customized water tank according to client’s specific requirements, it would be 7 to 15 days.
- The final delivery time shall be subject to the actual order confirmation.
The product information provided above may not be detailed or accurate enough. Please refer to actual communication for specific details. You are welcome to contact us！
