Water Tank Surface Structure, Texture and Color: 7 Key Differences

Many buyers often find that water tank panels have different surface structures, textures, and colors when purchasing water tanks, but they are not sure how to choose the right option. In this article, we will provide a detailed explanation of these differences from the aspects of panel structure, surface treatment, and material characteristics.

Water Tank Panel Shapes

Common water tanks on the market include:

• Stainless Steel Water Tanks
• Hot-Dip Galvanized Steel Water Tanks
• FRP (Fiberglass Reinforced Plastic) Water Tanks

To increase panel structural strength and improve the load-bearing capacity of water tanks, manufacturers usually use pressing and forming technology to change the original flat structure of steel panels.

The common embossed panel designs mainly include:

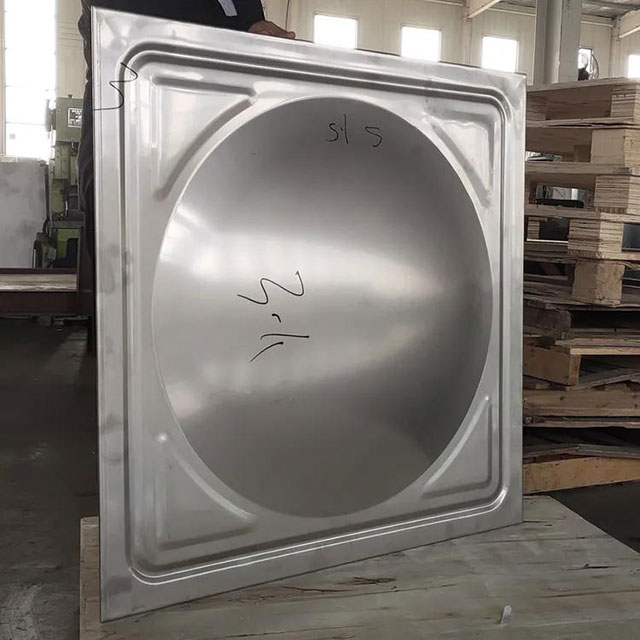

• Circular Embossing

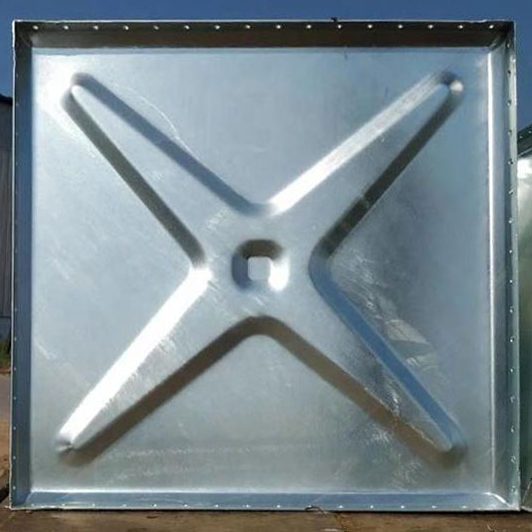

• X-shaped Embossing

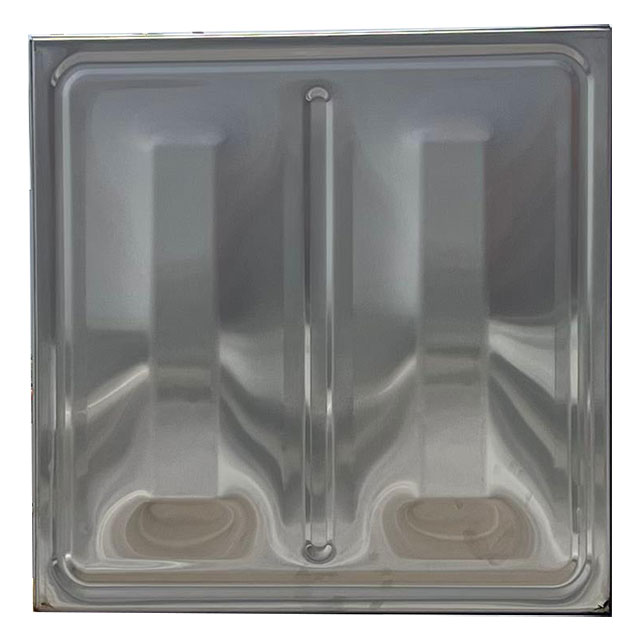

• Chocolate Pattern Embossing

Different manufacturers may have slightly different designs depending on their molds and production processes.

Pressure Resistance Performance

After pressing, the water tank panels form reinforced structures or embossed patterns, which can effectively improve:

• Panel rigidity
• Water pressure resistance
• Deformation resistance

The actual pressure-bearing capacity depends on multiple factors, including:

• Panel thickness
• Material grade
• Embossing structure
• Tank dimensions
• Reinforcement design

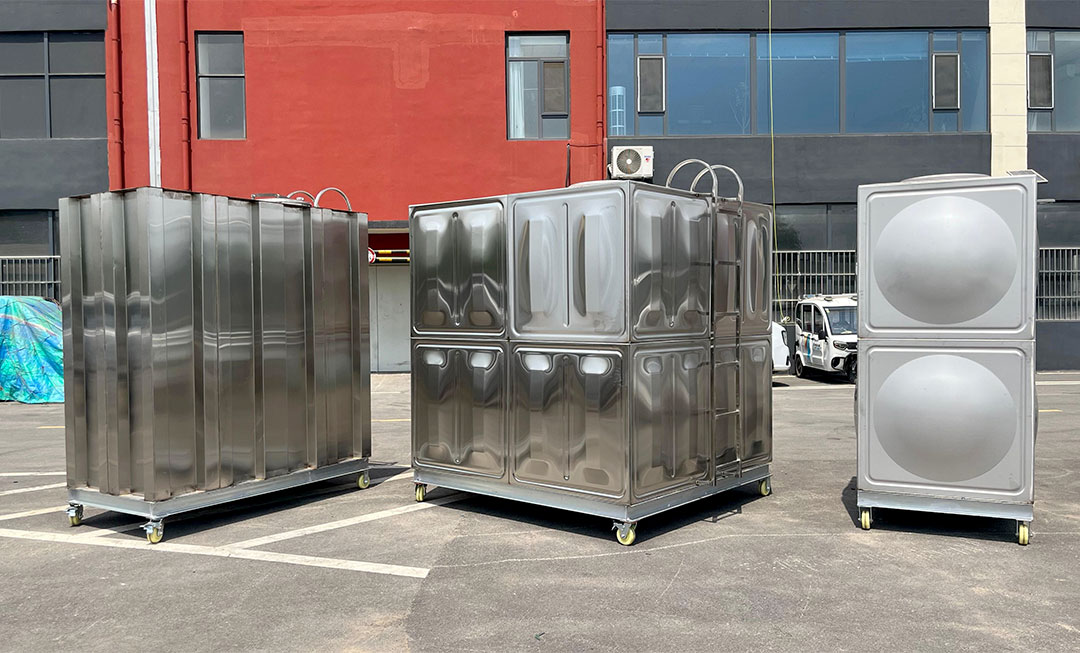

Water Tank Panel Textures and Colors

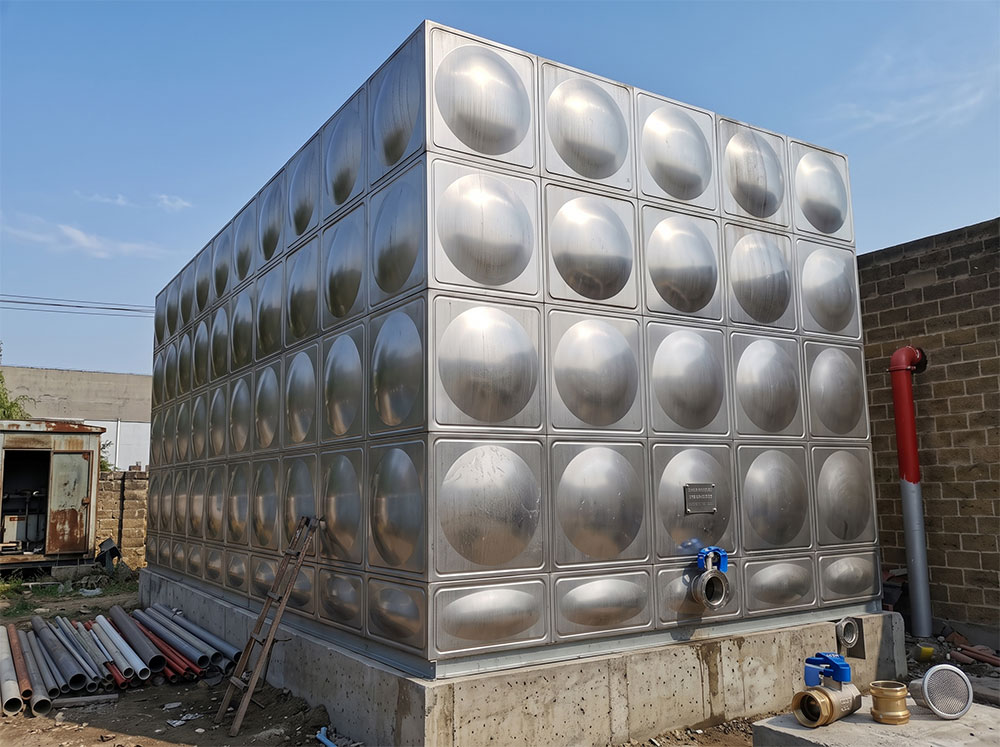

For SUS304/SUS316 stainless steel water tank panels, the common surface finishes include:

• Brushed Finish / Satin Finish
• Mirror Finish
• Colored Stainless Steel Finish

The differences mainly include:

• Appearance
• Processing technology
• Stain resistance
• Corrosion resistance
• Production cost
• Application environment

1. Brushed Stainless Steel (Brushed / Satin Finish)

Surface Characteristics

Brushed stainless steel is also known as satin finish or hairline finish. The surface has uniform fine lines, does not reflect strong light, and provides a soft metallic appearance.

Processing Technology

It is usually produced through:

• Abrasive belt grinding
• Brushing machine processing
• No.4 surface finishing

to create one-directional or cross-brushed textures.

Advantages

✅ Strong scratch resistance

• Minor scratches are less noticeable
• More resistant to wear during transportation and installation

✅ Less fingerprint visibility

• Easier to maintain compared with mirror stainless steel

✅ Strong industrial appearance

• Provides a stable and premium metallic look

Disadvantages

❌ Lower gloss level
❌ Surface textures may collect dust and require regular cleaning

In practice, brushed stainless steel is currently the most widely used surface finish for modular stainless steel water tanks.

2. Mirror Stainless Steel (Mirror Finish)

Surface Characteristics

Mirror stainless steel has a highly polished surface that can clearly reflect surrounding objects like a mirror.

Common grades include:

• 8K Mirror Finish
• BA Finish (Bright Annealed Finish)

Processing Technology

It is produced through multiple polishing processes:

1. Rough grinding
2. Fine grinding
3. Polishing
4. Mirror finishing

to achieve a high reflective surface.

Advantages

✅ Luxury and high-end appearance

✅ Very smooth surface

• Less likely to accumulate dirt
• Easy to clean

✅ Excellent visual effect

Disadvantages

❌ Easily shows fingerprints
❌ Scratches are more visible
❌ Higher processing cost

For water tanks, mirror stainless steel is generally not recommended for large-area applications. It is more suitable for special projects requiring premium appearance.

3. Colored Stainless Steel (Colored Stainless Steel Finish)

Colored stainless steel is not ordinary painted steel. The mainstream process is usually:

PVD Vacuum Coating (Physical Vapor Deposition)

Under a vacuum environment, metal ions such as:

• Titanium
• Chromium
• Zirconium

are deposited onto the stainless steel surface to create different colors.

Common colors include:

• Champagne Gold
• Titanium Gold
• Black Titanium
• Bronze
• Rose Gold

Application in Water Tank Industry

Colored stainless steel is not widely used in standard water tank manufacturing. It is mainly applied to:

• Stainless steel insulated water tank outer panels
• Decorative water tanks
• High-end architectural projects

Because insulated tank panels mainly protect the insulation layer and do not require extremely high structural strength, colored steel sheets are also suitable as external protective panels.

For water tanks, colored steel panels are usually available in:

• Gray-white color
• Brushed surface finish

which are visually similar to SUS304/SUS316 stainless steel.

4. Q235A Carbon Steel

Q235A is a type of ordinary carbon structural steel defined under China’s national standard (GB/T 700). It is widely used in:

• Building structures
• Steel plates
• Steel frames
• Machinery manufacturing

In the water tank industry, Q235A is mainly used as the base material for:

• Hot-Dip Galvanized Steel Water Tanks
• Galvanized Steel Panel Water Tanks

The meaning of Q235A:

Q represents the yield strength grade of the steel.

235 means the yield strength is approximately 235 MPa, indicating that the steel can withstand about 235 MPa stress before permanent deformation occurs.

Q235A is a low-carbon steel with characteristics such as:

• Easy processing
• Good weldability
• Good plasticity
• Low cost

After physical pressing and forming, its structural rigidity and pressure resistance can be significantly improved.

Common Surface Colors

In the water tank industry, the most common colors are:

• Silver gray
• Gray-white
• Metallic gray

After hot-dip galvanizing, a zinc protective layer is formed on the surface. The surface may have fine spangle patterns, providing excellent corrosion resistance.

It is commonly used for:

• Fire water tanks
• Industrial water storage tanks

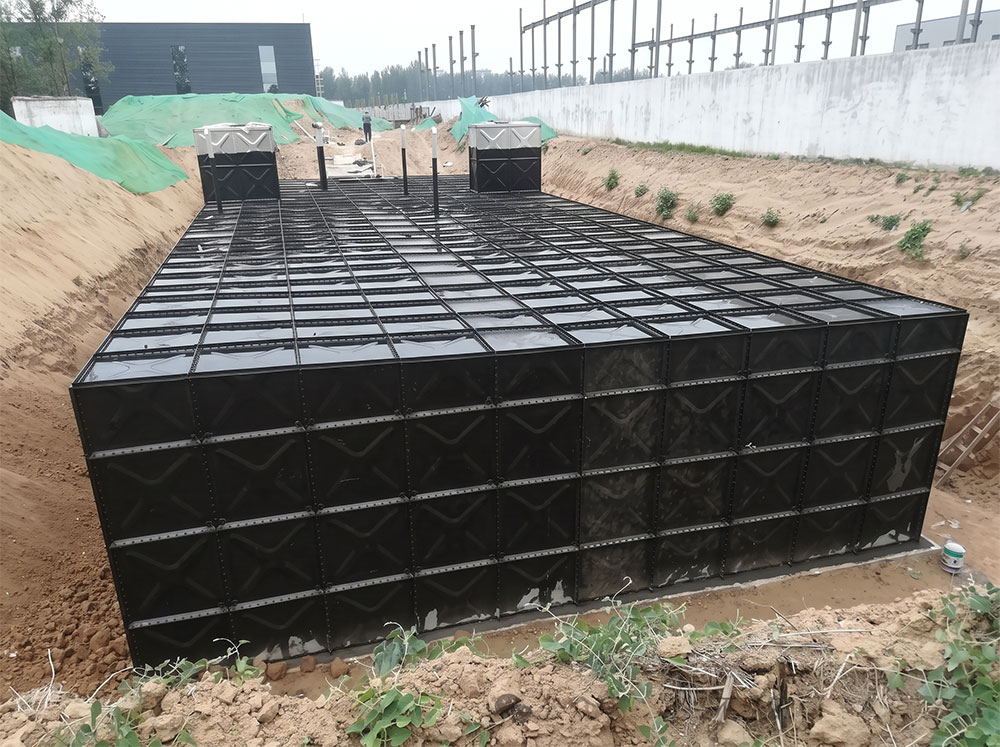

5. BDF Composite Water Tank with Black Bituminous Coating

BDF composite water tanks are usually used in special environments or underground water storage applications, especially where high pressure, high humidity, and corrosion resistance are required.

The external surface is usually black.

So, what is the difference between the black surface and common silver-gray materials?

The black color is not the original color of the panel. Instead, a layer of black bituminous coating is applied to the surface to provide additional protection.

Features:

• Traditional anti-corrosion coating for underground steel structures
• Low water absorption
• Strong covering ability
• Excellent resistance to soil corrosion

Applications:

• Underground steel water tanks
• Underground fire water tanks
• Underground storage tanks
• External pipeline corrosion protection

This is currently the most commonly used color for underground water tank protection.

6. Difference Between Q235A Carbon Steel and Stainless Steel

Item	Q235A Carbon Steel	SUS304 Stainless Steel
Material Type	Ordinary carbon steel	Austenitic stainless steel
Corrosion Resistance	Relatively weak	Excellent
Original Color	Dark gray	Silver-white
Need for Anti-corrosion Treatment	Required	Usually not required
Strength	High	High
Cost	Low	High
Processing Performance	Good	Good

7. Cost Comparison of SUS304/SUS316 with Different Surface Finishes

From low cost to high cost:

⬇️

SUS304 Brushed Finish
↓
SUS316 Brushed Finish
↓
SUS304 Mirror Finish
↓
SUS316 Mirror Finish
↓
SUS304 PVD Colored Finish
↓
SUS316 PVD Colored Finish

Stainless Steel Water Tank Configurations

Application Environment	Recommended Material	Recommended Surface
General Building Water Supply	SUS304	Brushed Finish
Fire Water Tank	SUS304	Brushed Finish
Food Factory	SUS304/SUS316	Brushed Finish
Coastal Area	SUS316	Brushed Finish
Hospital Pure Water System	SUS316L	Mirror / Brushed Finish
Hotel Decorative Water Tank	SUS304	PVD Colored Finish (Less Common)

---

For Oudrey modular stainless steel water tanks in overseas markets, the most common configuration is:

SUS304 + No.4 Brushed Finish

Reasons:

• Reasonable cost
• Professional appearance
• Less likely to show transportation scratches
• Widely accepted in international engineering projects

As one of the top modular water tank manufacturers in China, Oudrey provides customized solutions and installation services for various water storage systems, including:

• Stainless Steel Water Tanks
• Hot-Dip Galvanized Steel Water Tanks
• FRP Water Tanks
• BDF Underground Composite Water Tanks
• Elevated Water Tanks
• Insulated Water Tanks

Looking for a reliable water tank supplier? Choose Oudrey for professional manufacturing, customization, and project support.
