Middle East Factory Stainless Steel Ribbed Water Tank Procurement Case

In June, a customer from the Middle East contacted us seeking a high-strength, corrosion-resistant, and easy-to-install water storage solution for an industrial circulating water system. As the project was located overseas, the customer required a tank that could be efficiently transported in shipping containers and quickly installed on site to reduce construction time and labor costs.Based on the project requirements, we supplied a 4m × 2m × 3m ribbed stainless steel water tank.

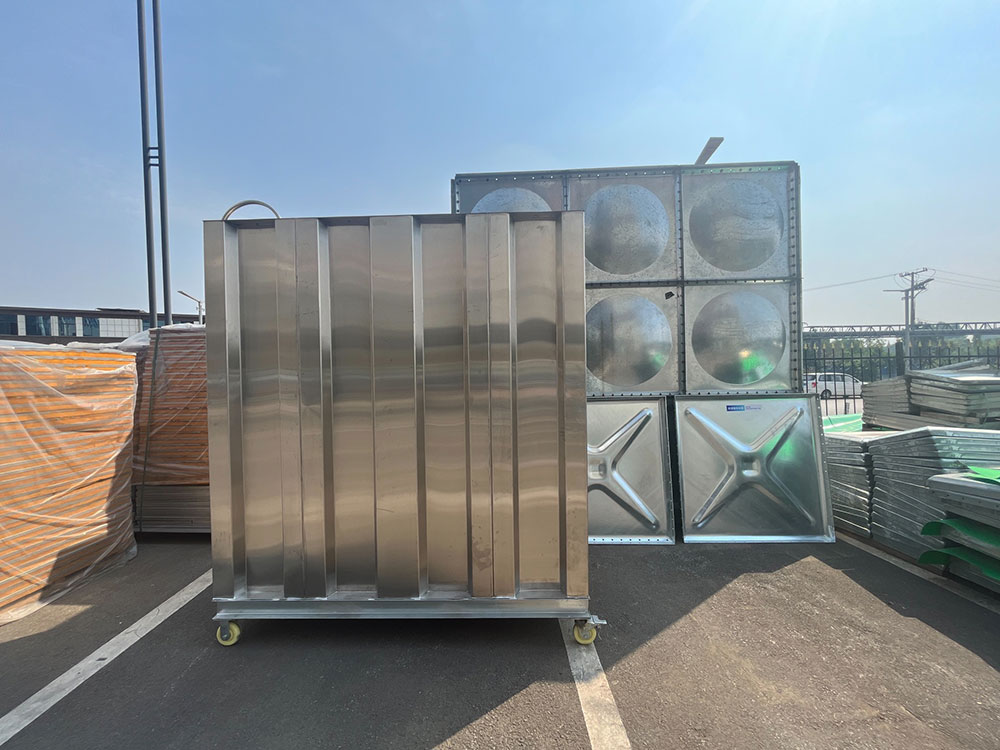

Ribbed Water Tank for Reference Only (Not Project Photos)

Project Overview

• Project Type: Industrial Water Storage System
• Installation Location: Overseas Industrial Park
• Product: Ribbed Stainless Steel Water Tank
• Tank Dimensions: 4m × 2m × 3m (L × W × H)
• Capacity: 24m³
• Material: SUS304 Stainless Steel (SUS316 available upon request)
• Installation Method: Welded

The tank is manufactured using reinforced ribbed stainless steel panels. Compared with conventional flat-panel tanks, the ribbed structure provides greater mechanical strength and rigidity, effectively minimizing panel deformation under full water pressure while improving the overall structural stability.

Panel Thickness

The panel thickness was designed according to the hydrostatic pressure of a 3-meter water level:

This configuration achieves an excellent balance between structural safety and cost efficiency, ensuring reliable long-term operation.

Product Features

• Reinforced ribbed structure for enhanced strength and load-bearing capacity.
• Manufactured from food-grade SUS304 stainless steel, with SUS316 available for higher corrosion resistance.
• Durable, corrosion-resistant, and rust-proof construction.
• Customizable dimensions, capacities, and panel thicknesses to meet project requirements.
• Excellent sealing performance to prevent leakage and contamination.
• Low maintenance requirements and long service life.
• Suitable for industrial water storage, fire protection, commercial buildings, and domestic water supply applications.

Standard Accessories

The accessories supplied with this project are the same as those used for standard welded stainless steel water tanks and can be customized according to customer requirements, including:

• Access Manhole
• Inlet Flange
• Outlet Flange
• Overflow Outlet
• Drain Outlet
• Air Vent
• Water Level Gauge Connection
• Internal Tie Rod Reinforcement System
• Internal or External Ladder
• Insect Screen
• Food-Grade Sealing Gasket
• Stainless Steel Bolts, Nuts, and Fasteners
• Base Steel Beams (Hot-Dip Galvanized or Painted Carbon Steel Optional)

Why Choose a Ribbed Stainless Steel Water Tank?

A ribbed stainless steel water tank combines the advantages of a reinforced structural design with the durability of stainless steel, offering superior strength, excellent corrosion resistance, convenient transportation, and fast installation. These benefits help reduce the overall cost of overseas engineering projects, making it an ideal solution for industrial plants, fire protection systems, municipal infrastructure, commercial buildings, and public water storage applications.
