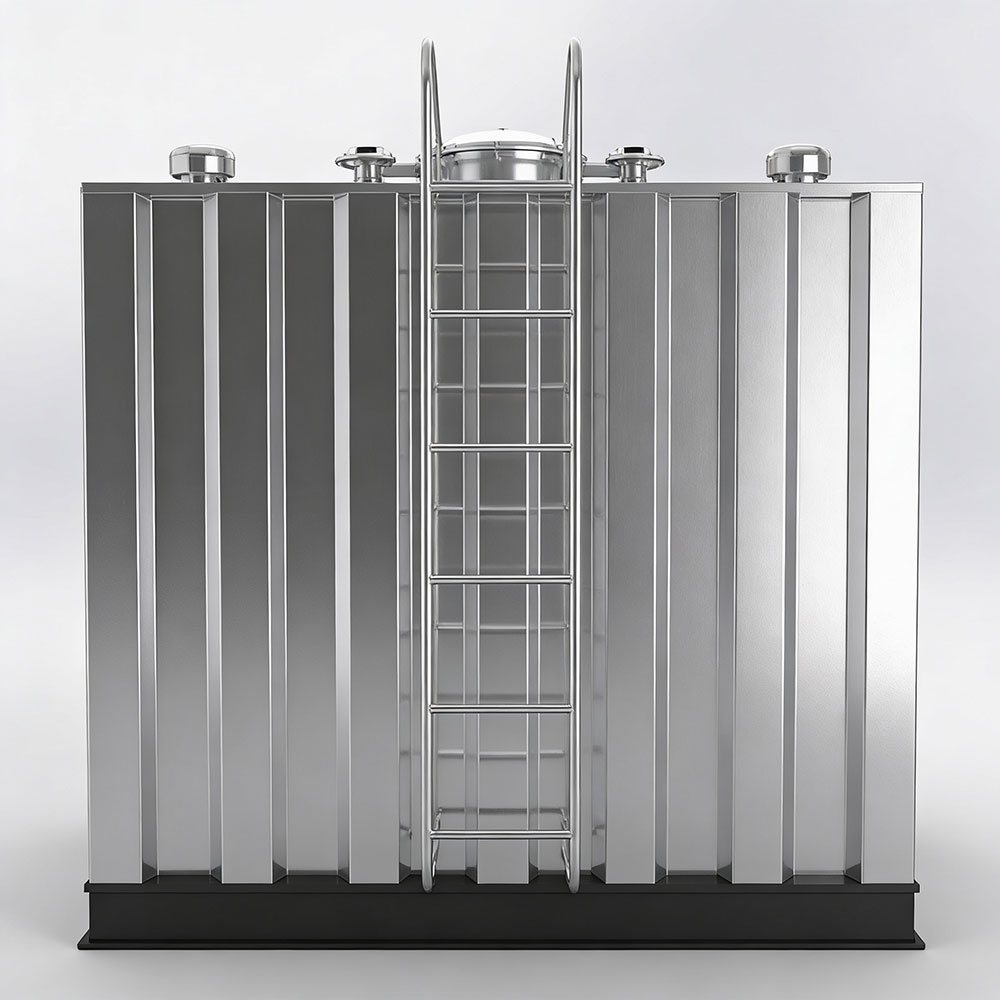

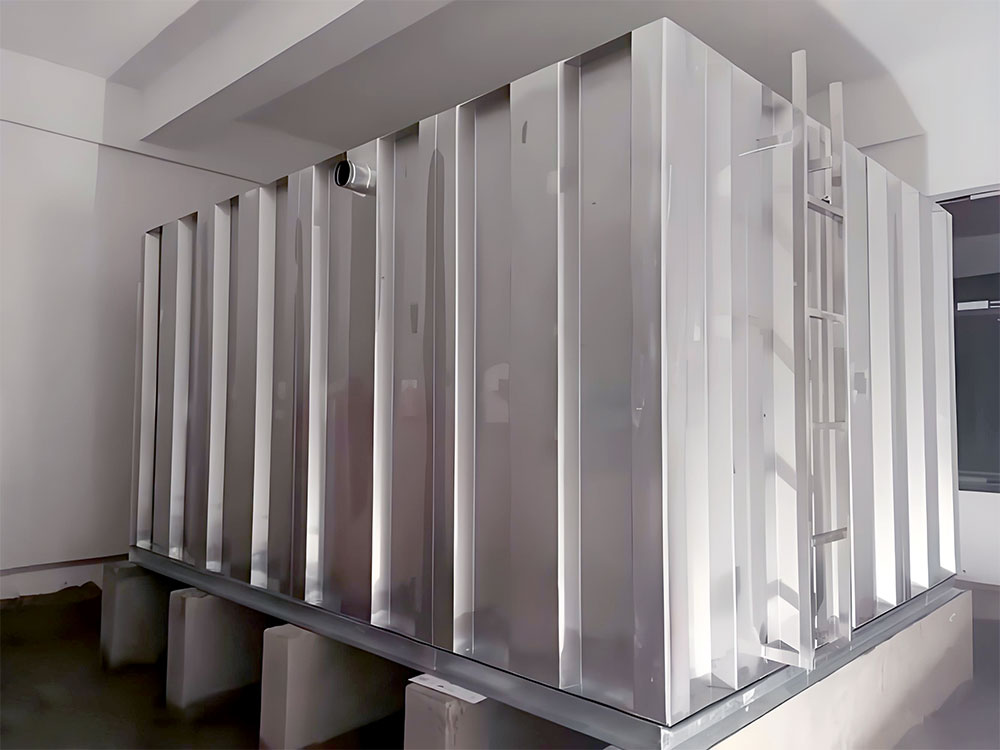

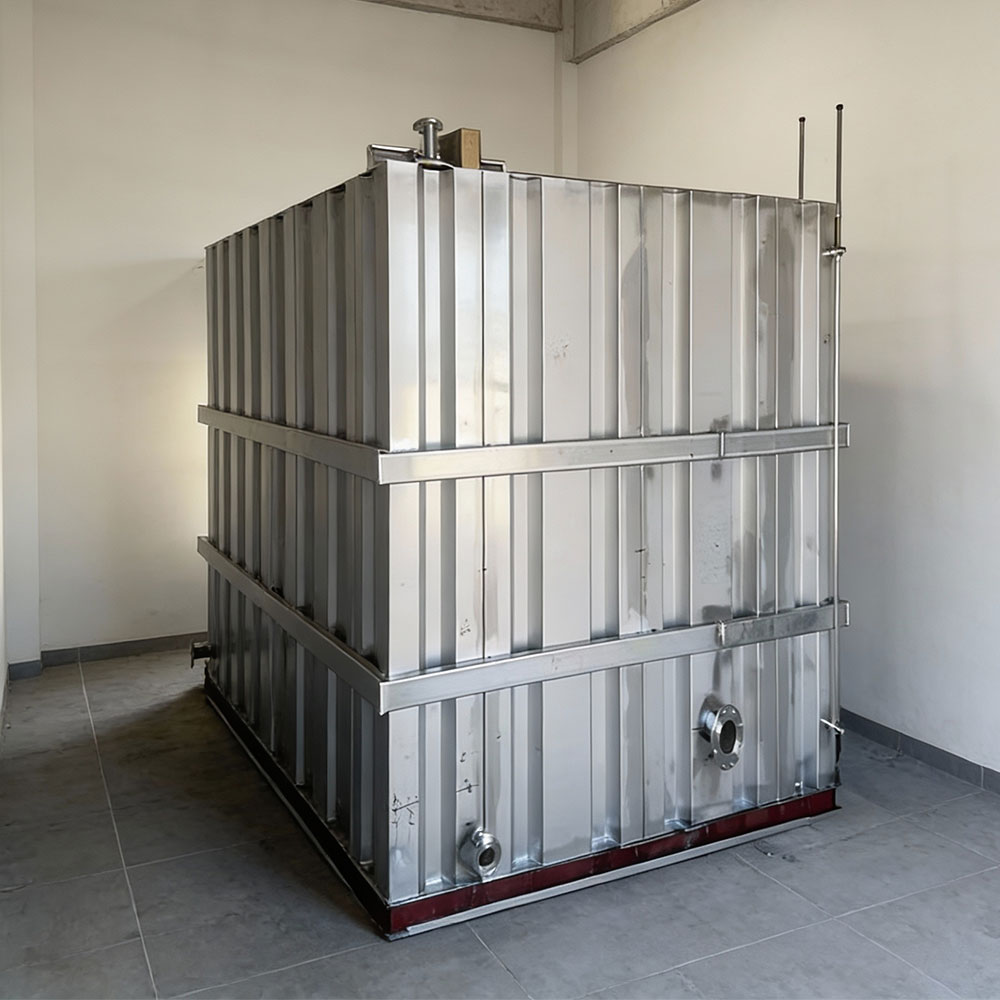

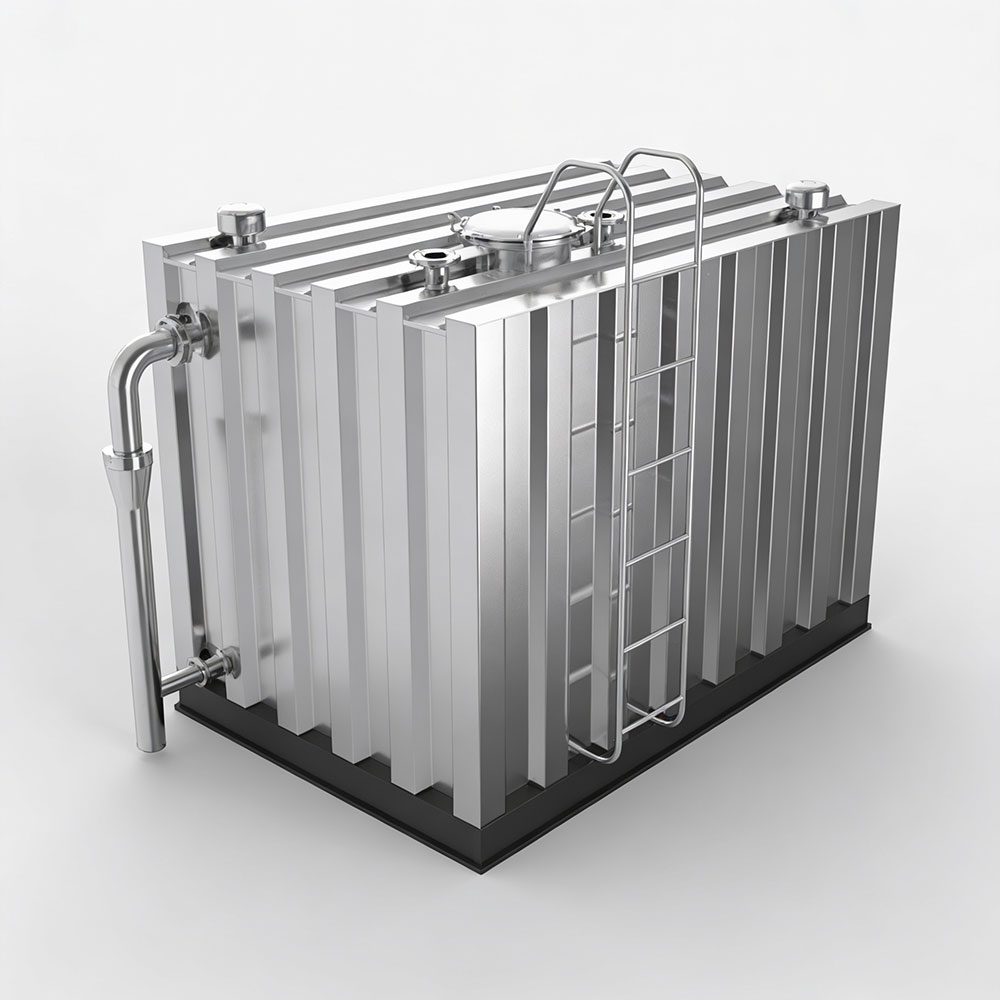

Stainless Steel Ribbed Water Tank
The stainless steel ribbed water tank is widely used in various environments, including residential, industrial settings.
It is made from high-strength stainless steel materials and features a unique ribbed design, offering excellent pressure resistance and durability.
It is made from high-strength stainless steel materials and features a unique ribbed design, offering excellent pressure resistance and durability.
Key Points Tag :
Custom Stainless Steel Ribbed Water Tanks, Water Storage Solutions for Various Industries.
The tank body is constructed from welded ribbed panels of SUS304 or SUS316 stainless steel, with internal reinforcing ribs made of stainless steel round tubing distributed in both horizontal and vertical directions. The tank walls, top, and bottom panels have no cross-shaped welds.
The side panels, top, and bottom panels are reinforced panels with grooves no wider than 9 cm running along their length, providing high strength and compressive resistance.
Application Scenarios
-

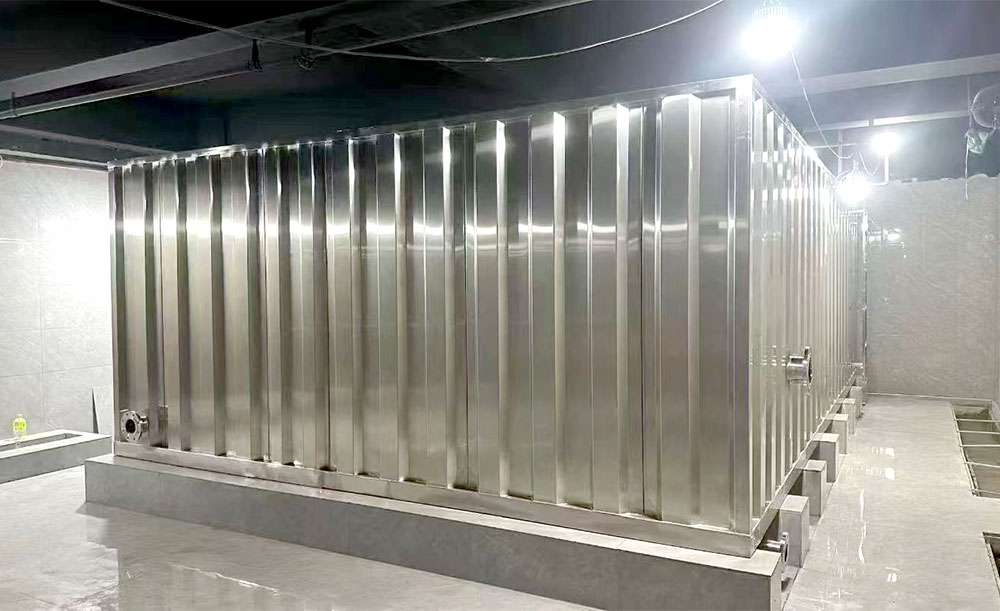

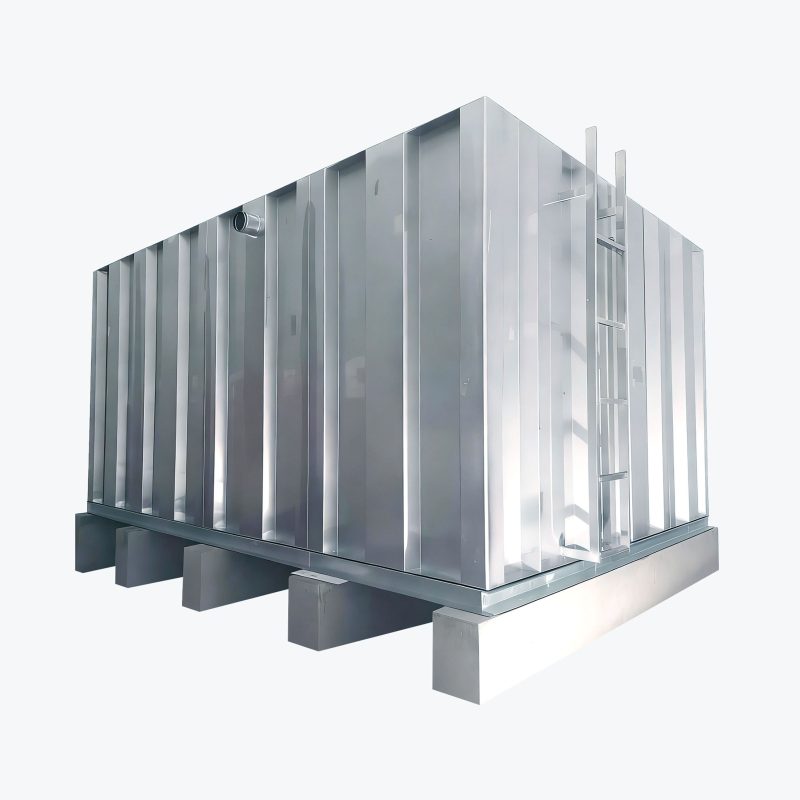

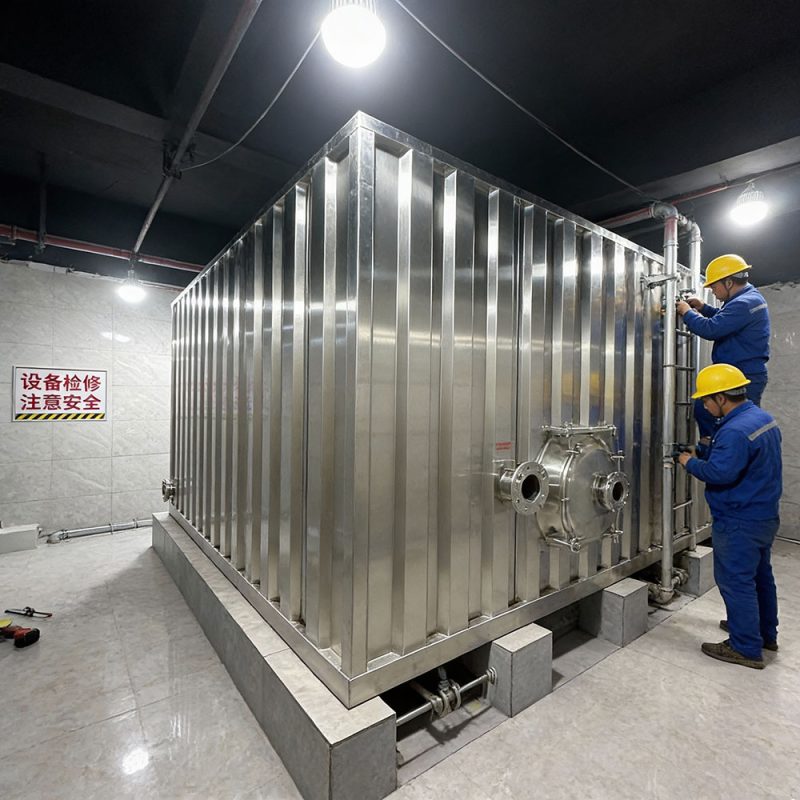

Domestic Water Supply: Suitable for storing domestic water in high-rise buildings, residential communities, etc., providing a stable water supply to residents.
-

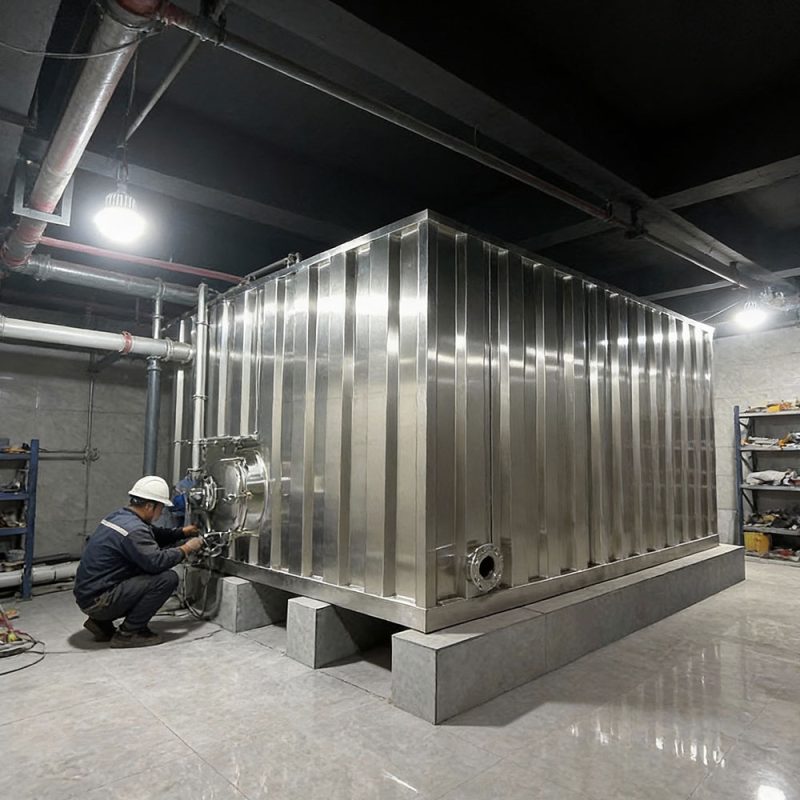

Fire Protection Systems: Used as a fire water tank to store fire-fighting water, meeting fire safety regulations and ensuring sufficient water during fires.
-
Industrial Applications: Can be used to store process water, coolants, etc., in power plants, chemical plants, and manufacturing industries.
-
Agricultural Irrigation: Used to store rainwater or irrigation water, supporting sustainable agricultural development.
-

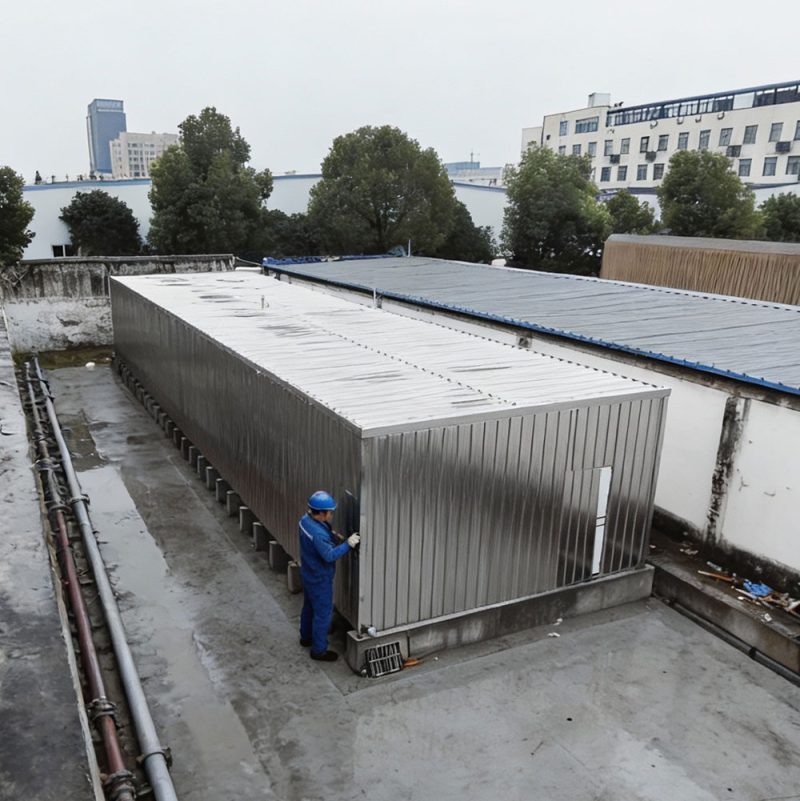

Emergency Engineering: Can serve as an emergency water storage facility, quickly transported and installed to provide clean water in the aftermath of disasters such as floods and earthquakes.
Ribbed Water Tank Advantages
-
Superior Raw Materials The stainless steel stamping corner plate features a simple, convenient polished surface that prevents dirt buildup, making future cleaning easier. The panels are made from high-quality materials (stainless steel or galvanized steel), which are more durable and cost-effective compared to FRP (Fiberglass Reinforced Plastic).
-
Better Pressure Performance The high-strength punched plates and the uniform distribution of stainless steel tension within the box ensure an even and reasonable pressure distribution, enhancing the overall pressure resistance.
-
Easier Installation Standard stamped plates can be freely combined, assembled, and welded on-site without the need for lifting equipment, simplifying the installation process.
-
Higher Stability The water tank, formed by high-temperature and high-pressure mechanical pressing of the panels, exhibits excellent pressure resistance, increasing the tank’s capacity and ensuring a service life of over 20 years.
Core Structure and Materials
-
Main Material: High-grade stainless steel plate (SUS304 / SUS316)
-
Structural Design: Unique concave-convex rib design, with plate width ≤ 9cm, achieving a high-strength tank structure.
-
Reinforcement System: Internal stainless steel round tubes provide horizontal and vertical reinforcement, enhancing the overall strength of the tank.
-
Welding Process: No cross welds on the wall panels, top plate, and bottom plate, greatly reducing stress concentration and leakage risk.
Product Features
-
High Strength and Pressure Resistance: Double reinforcement with ribs and tie rods provides excellent pressure resistance.
-
Hygienic and Easy to Clean: Smooth surface, no dead corners, making it easy to clean and maintain.
-
Excellent Sealing: Advanced welding technology ensures long-term leak-proof performance.
-
Easy Installation: Modular design for simple on-site assembly, saving construction time.
-
Aesthetic and Durable: Simple and beautiful appearance, stainless steel material remains pristine over time.
The tank body is constructed from welded ribbed panels of SUS304 or SUS316 stainless steel, with internal reinforcing ribs made of stainless steel round tubing, distributed in both horizontal and vertical directions. The side panels, top plate, and bottom plate have no cross welds. The side, top, and bottom panels are reinforced with grooves no wider than 9 cm along their length, enhancing the tank’s pressure resistance.
Accessories
-
Bolt nut & washers stainless steel 304 material.
-
Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
-
Covers the tank cover shall be constructed from 3mm to 5mm of thickness steel 304 material according to the requirement.
-
Ladders and Level Indicator. Internal & external ladder shall be made of stainless steel grade 304 material.
Instructions
-
Only hold water for life or fire water. Not hold hydrochloric acid,
-
sulfuricacid,acid or alkaline liquid.
-
The water tank regular cleaning and disinfection 1-2 times a year.
| Product Name | Stainless Steel Ribbed Water Tank |
|---|---|
| Material | SUS304, SUS316 |
| Origin | China |
| Color | Nickel white |
| Panel thickness | From 5mm to 24mm |
| Certification | ISO3834, ISO9001 |
| HS Code | 730990 |
| Capacity | 1000Litres -Infinity |
| Foundation | Concrete Foundation, U-Steel Bottom Bas |
| Installation | Sitting Type, Welding |
| Production Capacity | 2000Ton/Month |
| Transport Package | Pallet Box, Plywood Pallet, Steel Frame |
| Sample | Provided |
| After-Sale Service | Online Technical Support |
1 review for Stainless Steel Ribbed Water Tank
Add a review
Professional Design Capability
Packing & Shipping
- The products are packaged using iron frames or plywood boxes to ensure they are not damaged during land transportation and shipping.
- Each individual package is covered with a waterproof film to prevent exposure to moisture during long-term sea transportation.
- Accurately label all panels and accessories to facilitate quick installation by customers.
Water Tank Panel Packaging 1
Plywood Box
Water Tank Panel Packaging 2
Steel Frame Support
Water Tank Panel Packaging 3
HDG
Water Tank Panel Packaging 4
GRP/FRP
Large Components
Loose Packing
Small Accessories Packaging
Plywood Box
Full Container Shipment
Steel Frame Packaging
Full Container Shipment
Simple Packaging
Qualification & Certification
Our water tank products are designed and manufactured in strict accordance with domestic and international standards and have passed multiple industry-recognized certifications, including ISO 9001 Quality Management System certification, food-grade stainless steel material standards (SUS304 / SUS316), and drinking water safety-related certifications.
Delivery
- For standard water tank less than 200m3, it would be 3-5 days;
- For non-standard water tank and customized water tank according to client’s specific requirements, it would be 7 to 15 days.
- The final delivery time shall be subject to the actual order confirmation.
The product information provided above may not be detailed or accurate enough. Please refer to actual communication for specific details. You are welcome to contact us！
