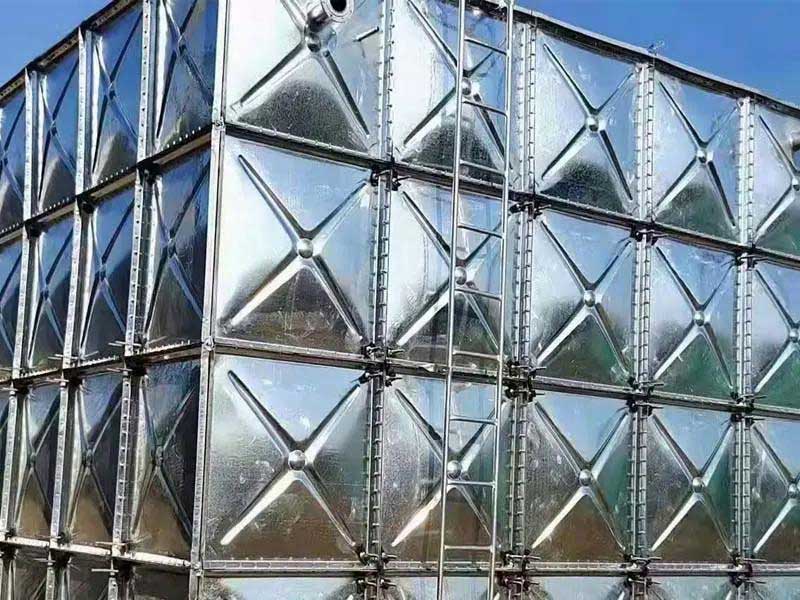

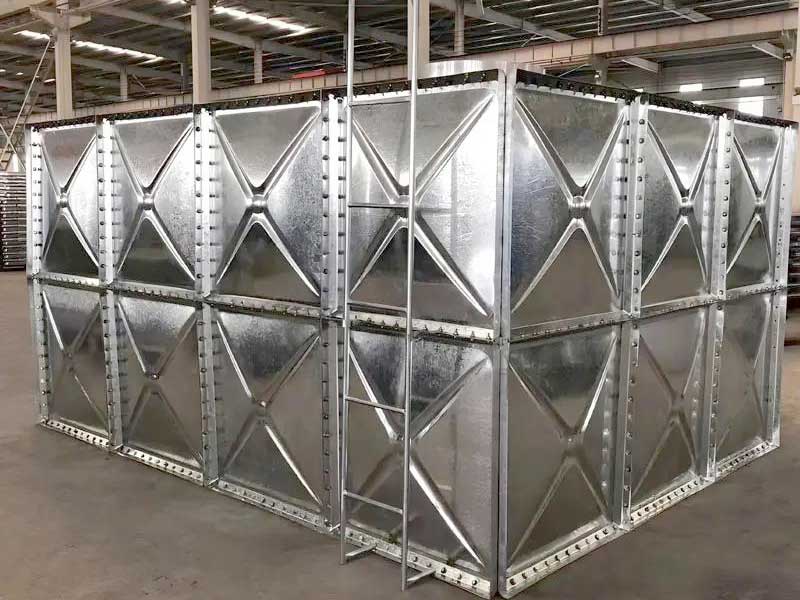

How Much Does a Hot-Dip Galvanized Modular Water Tank Cost?

When purchasing a modular square water tank, how much does a modular water tank cost? This is one of the main concerns of engineering companies, contractors, fire protection engineering companies, and water treatment equipment purchasers when purchasing supporting water tanks for their projects.

Unlike finished plastic water tanks or small prefabricated steel water tanks, hot-dip galvanized modular water tanks are customized products assembled on site from standardized galvanized steel panels, internal support structures, bolts, sealing materials, and other accessories.

The height of the water tank directly affects the thickness of each layer of steel panels. Different tank sizes require different numbers of internal tie rods and support structures, and the diameter and number of inlet and outlet connections also vary from project to project. Therefore, there is no standard price that can be directly quoted for all modular water tanks.

To give you a general idea of water tank prices, I will use hot-dip galvanized modular water tanks with capacities of approximately 25 m³, 50 m³, 100 m³, and 500 m³, which are frequently requested by customers, as examples. You can use the following data for an initial estimate of your project budget.

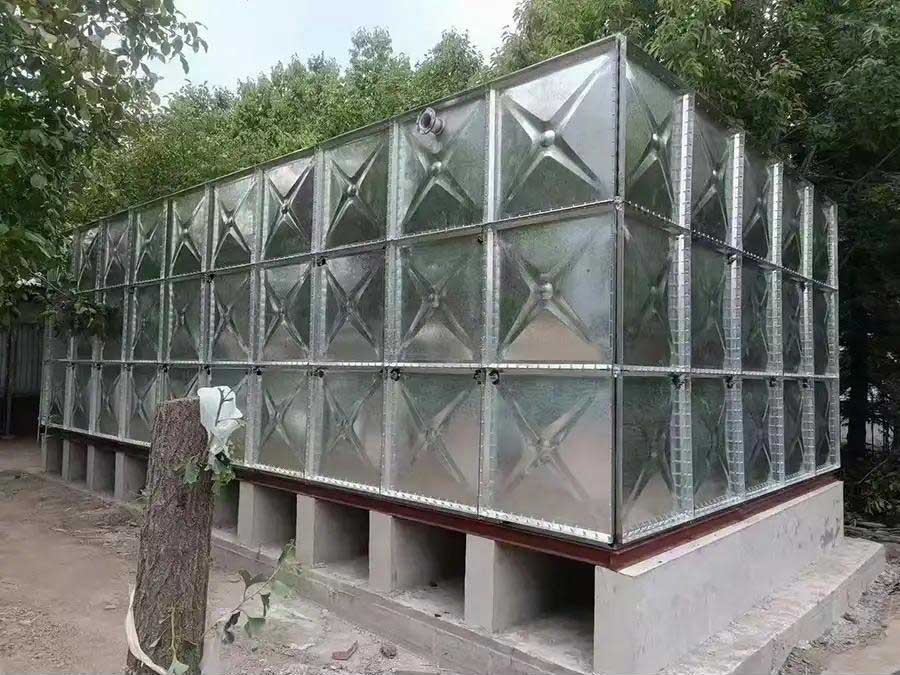

Reference Prices for Approximately 25 m³, 50 m³, 100 m³, and 500 m³ Hot-Dip Galvanized Water Tanks

In actual projects, water tanks with the same capacity but different dimensions may have different prices. Raw material prices may also fluctuate over time. In particular, the height of the water tank directly affects the thickness of the steel panels and therefore the overall tank price.

The following prices are provided for project budget reference only. The actual quotation needs to be confirmed based on the specific tank dimensions, panel thicknesses, accessories, and packaging.

Water Tank Capacity	Weight	Packing Volume	Reference Price
25 m³	1.7 t	3.5 m³	USD 2,350
50 m³	3 t	6 m³	USD 5,150
100 m³	7 t	12 m³	USD 8,820
500 m³	33 t	35 m³	USD 29,400

It should be noted that the water tank price is not the same as the total project cost. Normally, the water tank quotation mainly includes the tank body and standard accessories. On-site installation, international transportation, and other supporting equipment need to be calculated separately.

How Is the Price of a Hot-Dip Galvanized Modular Water Tank Calculated?

Here, we take a water tank of approximately 25 m³ as an example. This capacity is relatively common for small modular water storage projects and is suitable for fire water storage, domestic water, industrial water, rainwater collection, and small commercial buildings. It is generally installed in equipment rooms, on rooftops, and in other locations.

Common dimensions include:

4 m × 3 m × 2 m = 24 m³

3 m × 3 m × 3 m = 27 m³

6 m × 2 m × 2 m = 24 m³

The calculation is based on the following components:

Name	Material	Reference Thickness / Specification	Size / Specification	Unit	Quantity	Unit Price
Top Panel	Hot-Dip Galvanized Steel	2.0 mm	1000 × 1000 mm	pcs	8	*
Side Panel 1	Hot-Dip Galvanized Steel	2.5 mm	1000 × 1000 mm	pcs	12	*
Side Panel 2	Hot-Dip Galvanized Steel	3.0 mm	1000 × 1000 mm	pcs	12	*
Side Panel 3	Hot-Dip Galvanized Steel	4.0 mm	1000 × 1000 mm	pcs	12	*
Bottom Panel	Hot-Dip Galvanized Steel	4.0 mm	1000 × 1000 mm	pcs	8	*
Manhole	—	—	1000 × 1000 mm	pcs	1	*
Vertical Support	Galvanized Steel	Ø20 × 2.0 mm Tube	3000 mm	pcs	3	*
Tie Rod	Hot-Dip Galvanized Steel	M16 Round Steel Bar	4000 mm	pcs	2	*
Tie Rod	Hot-Dip Galvanized Steel	M16 Round Steel Bar	2000 mm	pcs	6	*
Tie Rod Nuts	Galvanized Steel	—	M16 × 60	sets	51	*
Internal & External Ladders	Galvanized Steel	Ø20 × 1.5 mm	400 mm Wide	m	6	*
Ladder Clamps	Galvanized Steel	—	—	sets	6	*
Channel Steel	Galvanized Steel	—	No. 12	m	22	*
Gasket Bolts	Galvanized Steel	—	M10 × 30	sets	1,344	*
Flange Fittings	Galvanized Steel	—	—	lot	1	*
Level Gauge Cock	Galvanized Steel	—	—	set	1	*
Level Gauge Pipe	—	—	—	m	3	*
Black Drain Plug	—	—	—	sets	16	*
Silicone Sealant	—	—	—	bottles	7	*
Black Rubber Sealing Strip	—	—	—	m	112	*
Wooden Supports	—	—	—	pcs	2	*

Modular HDG Water Tank Panel Specifications

Height	Bottom Board	1st Layer	2nd Layer	3rd Layer	4th Layer	5th Layer	Top board
5000 mm	5 mm	5 mm	5 mm	4 mm	3 mm	2.5 mm	2 mm
4500 mm	5 mm	5 mm	5 mm	4 mm	3 mm	2.5 mm	2 mm
4000 mm	5 mm	5 mm	4 mm	3 mm	2.5 mm		2 mm
3500 mm	4 mm	4 mm	3 mm	3 mm	2.5 mm		2 mm
3000 mm	4 mm	4 mm	3 mm	3 mm			2 mm
2500 mm	4 mm	4 mm	3 mm	3 mm			2 mm
2000 mm	3 mm	3 mm	3 mm				2 mm
1500 mm	3 mm	3 mm	3 mm				2 mm
1000 mm	3 mm	3 mm					2 mm

Considering water pressure and structural stability, we generally do not recommend a modular water tank height exceeding 5 m, or even 4 m. Therefore, for water tanks with a capacity of 100 m³ or more, the larger the tank volume, the greater the horizontal span, and the more internal tie rods and support structures are required.

Besides the Panels, Which Accessories Affect the Price of a Hot-Dip Galvanized Water Tank?

If pumps, valves, and other supporting equipment are not considered and only the necessary water tank accessories are included, the impact of accessories on the price is relatively small. Common necessary accessories include:

• Inlet flange
• Outlet flange
• Drain outlet
• Overflow outlet
• Manhole
• Water tank ladder
• Vent
• Level gauge
• Leak-proof sealing strips

The following items are more likely to cause price fluctuations:

1. Leak-proof sealing strips

The main difference is between ordinary black rubber sealing strips and food-grade white silicone sealing strips. The appropriate type can be selected according to the water quality requirements. The price difference between the two types is approximately RMB 1 per meter. For large water tanks, the total difference may reach more than RMB 1,000.

2. Insulation and protective layers

As optional items, rubber-plastic insulation foam can provide protection, UV resistance, moisture resistance, waterproofing, and thermal insulation for projects that are exposed outdoors for long periods. The required area is approximately equal to the surface area of all six sides of the water tank.

3. Protective railings around the top of the water tank

Therefore, when purchasing, you should clearly confirm the water tank dimensions, pipe diameters, water quality requirements, protective configurations, and other details with the supplier in order to obtain an accurate quotation. A water tank itself is a customized product. If a supplier gives you a quotation without discussing the specific configuration with you, it may be an unreliable quotation or an unprofessional approach.

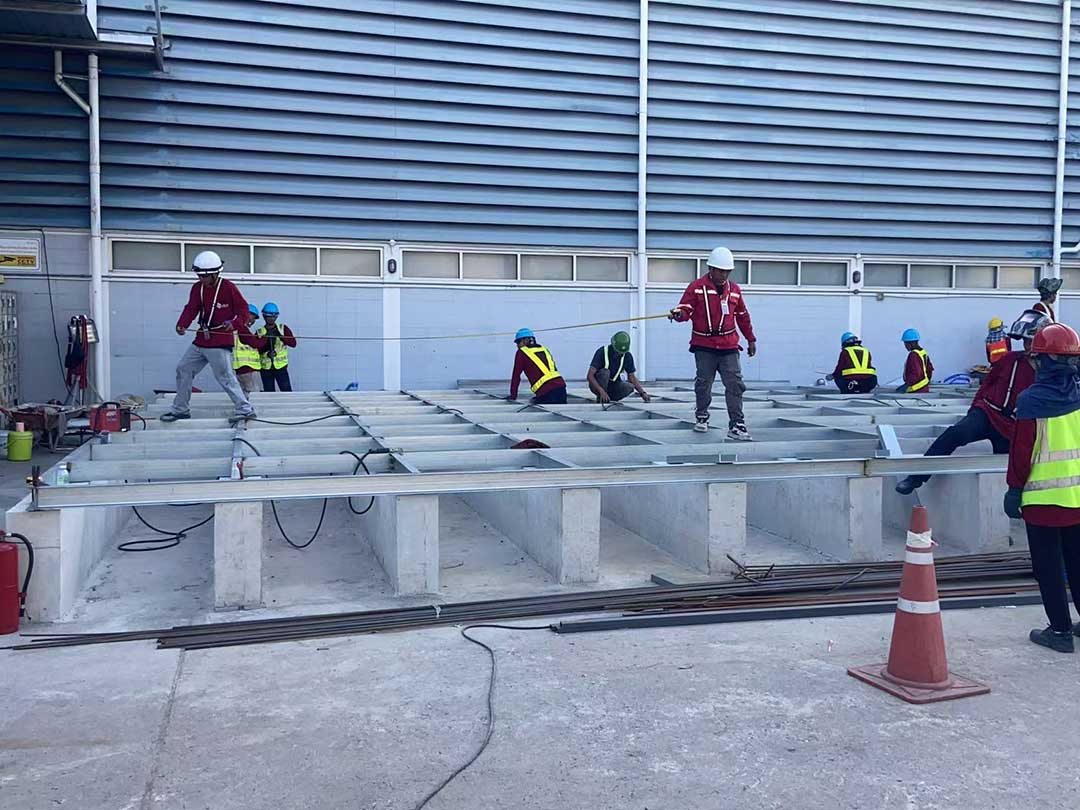

How Much Does It Cost to Install a Hot-Dip Galvanized Water Tank?

The water tank price normally does not include installation costs. If installation personnel need to be sent by the manufacturer, the following costs need to be considered:

• Labor service fees
• Round-trip airfare
• Visa
• Accommodation
• Meals
• Local transportation

The installation labor service fee is normally USD 200 per person per day, while other costs are calculated according to the actual project conditions.

Installation Schedule and Number of Workers

For experienced local engineering companies or contractors, the manufacturer can also provide:

• Installation instructions
• Video guidance
• Technical support

The installation can then be completed by local construction personnel.
