150m³ HDG Fire Water Tank Project in Bangkok, Thailand

Project Overview

This project is located in Bangkok, Thailand. The customer purchased a fire emergency water tank for a commercial center, which was installed together with the fire pumps, valves, and piping system.

Based on the building type, required fire system flow rate, required water supply duration, and applicable local codes and standards, the customer calculated that a 150m³ storage capacity was sufficient to meet the project’s fire water storage requirements. Therefore, a 10m × 5m × 3m hot-dip galvanized (HDG) sectional water tank was selected for the project.

Project Parameters

Project	Parameter
Country / City	Bangkok, Thailand
Application	Fire Water Storage
Tank Type	Modular Hot-Dip Galvanized (HDG) Water Tank
Tank Size	10 × 5 × 3 m
Total Capacity	Approximately 150 m³
Tank Structure	Modular Sectional Structure
Installation	On-Site Assembly
Main Application	Fire Protection Water Storage

Bangkok’s Building Environment and Project Requirements

As an important commercial, financial, and tourism center in Southeast Asia, Bangkok has a wide range of high-rise residential buildings, apartments, office buildings, commercial complexes, and hotels.

These buildings generally have relatively complex MEP systems and a high level of equipment integration. Therefore, fire protection systems need to be coordinated with the building structure, equipment spaces, and water supply and drainage systems. In many projects, fire water tanks are purchased and installed together with other fire protection equipment by specialized fire safety equipment suppliers.

This project needed to consider the following key requirements:

• Meet the fire water storage requirements of the building’s fire protection system;
• Provide a stable water source for the fire pumps and related fire protection systems;
• Adapt to Bangkok’s hot and humid tropical climate;
• Accommodate the limited installation space commonly found in urban buildings;

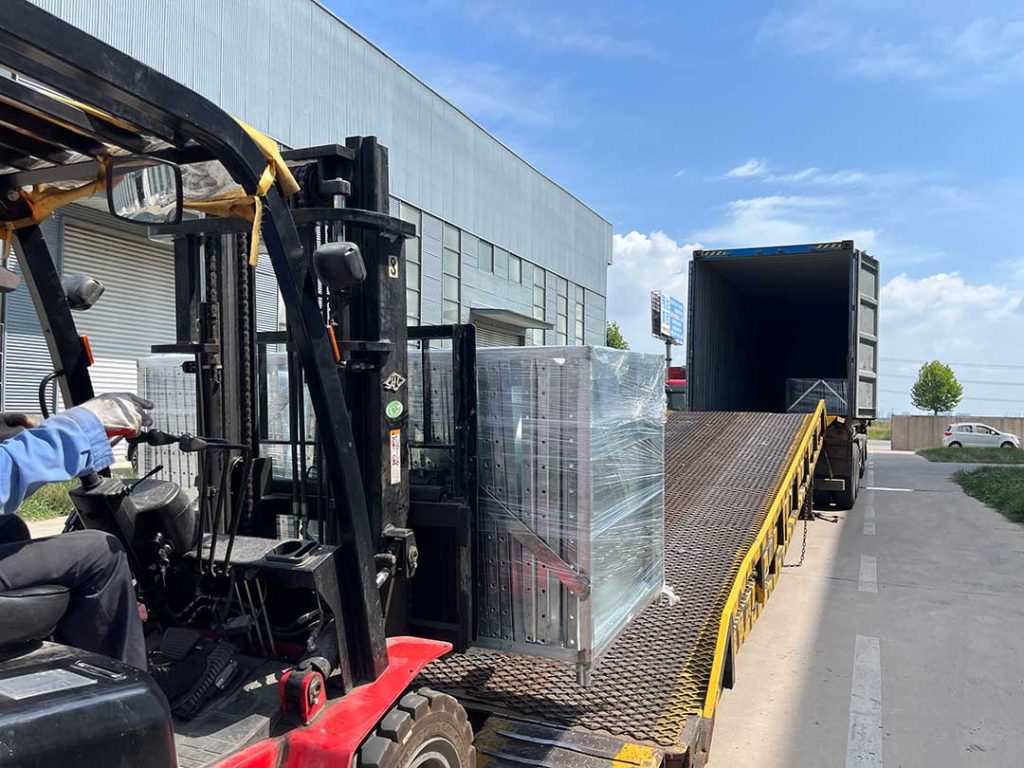

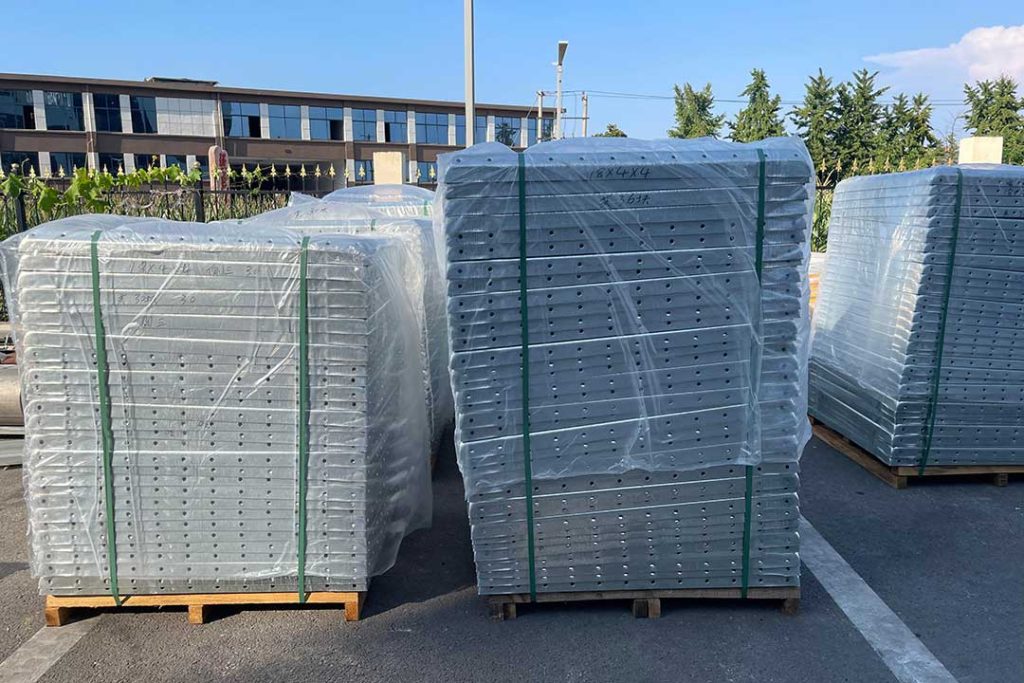

• Facilitate transportation and on-site installation of the large-capacity tank;
• Allow convenient inspection, maintenance, and cleaning.

Water Tank Design Considerations for Tropical Environments

Bangkok has a warm and humid climate throughout the year. Building equipment and water storage systems may therefore be exposed to relatively high temperatures and humidity for extended periods. As a result, the tank material, corrosion protection, sealing system, and maintenance conditions all need to be considered during the design process.

The tank installation area should be well ventilated and protected from long-term water accumulation. The foundation must have sufficient load-bearing capacity and a suitable level surface to ensure the structural stability of the tank during long-term operation.

At the same time, sufficient maintenance clearance should be provided around the tank to allow convenient inspection of the panels, connections, inlet and outlet fittings, and other accessories.

In addition, rubber foam insulation can be installed around the exterior of the tank to provide additional protection against the humid external environment and reduce direct exposure to sunlight. This can help protect the tank and potentially extend its service life.

Which Type of Water Tank Is Suitable for Southeast Asia?

Currently, the main types of modular sectional water tanks available on the market include hot-dip galvanized water tanks, GRP/FRP water tanks, and stainless steel water tanks.

From an environmental adaptability perspective, all three types can be used in Southeast Asian climates when properly designed and manufactured. Hot-dip galvanized and GRP/FRP water tanks offer sufficient corrosion resistance for many projects in this region, although the appropriate tank material should ultimately be selected according to the specific application, water quality, installation environment, and project requirements.

Southeast Asian customers also tend to place significant emphasis on cost-effectiveness when selecting water storage solutions. From a cost perspective, GRP/FRP and hot-dip galvanized sectional water tanks are often more economical options compared with stainless steel tanks, making them suitable choices for many commercial, industrial, municipal, and building water storage projects in Southeast Asia.
