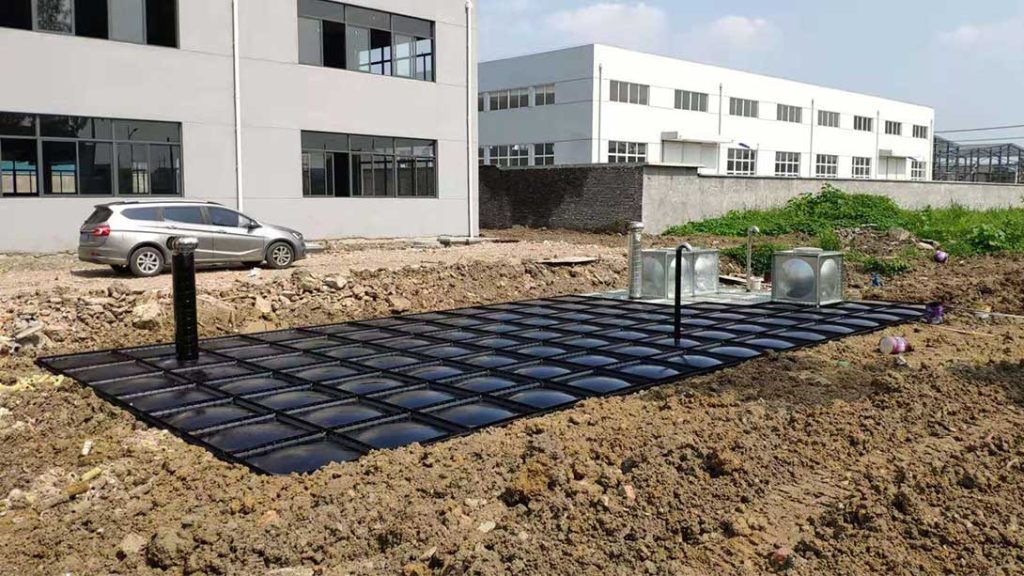

What is a Modular Composite Underground Water Tank? BDF & GSC

A modular composite underground water tank is an underground storage system assembled from standardized modular panels, widely used for potable water and fire protection systems. It combines hygiene, structural strength, and installation convenience, making it a high-cost-performance solution for modern projects.

Underground Water Tank Structure

The tank uses a dual-layer composite metal panel structure:

• Inner layer: stainless steel panel
  • Direct contact with water, ensuring safe drinking water and fire water hygiene
  • Corrosion-resistant and durable, extending service life
• Outer layer: galvanized steel panel
  • Provides structural support and pressure resistance
  • Protects against soil pressure and external impact, keeping the tank stable

Using a BDF structure (Bolted Dual-layer Formed), the tank panels are quickly assembled on-site with bolts, enabling flexible modular construction.

In the industry, BDF tanks and GSC composite panel tanks are essentially the same type of product described from different technical perspectives:

• BDF emphasizes the tank’s structure and installation method (formed panels + dual-layer structure + bolted assembly)
• GSC emphasizes the panel material type (stainless steel + galvanized steel)

In practice, both are often used together in the same tank system for design, construction, and material optimization.

Advantages of Modular Composite Design

Compared to traditional tanks, modular composite underground water tanks offer significant advantages:

1. Modular Installation
   • Standardized panels, quickly assembled on-site with bolts
   • Flexible sizing to meet diverse project requirements
   • No large lifting equipment needed, saving construction costs
2. Composite Panel Advantages
   • Stainless steel inner layer ensures hygiene and water safety
   • Galvanized steel outer layer provides high strength and corrosion resistance
   • More cost-effective than full stainless steel tanks
3. Robust Structure & High Durability
   • Dual-layer design improves overall pressure resistance and soil load capacity
   • Suitable for complex underground conditions and humid environments
4. Convenient Transportation
   • Modular panels shipped as separate components, reducing logistics costs
   • Ideal for overseas and remote projects
5. Space-Saving Design
   • Underground installation saves valuable surface space
   • Helps maintain urban aesthetics and efficient land use

Typical Applications

• Industrial factory water supply systems
• Commercial complexes and residential communities
• Fire water storage systems (combined domestic and fire use)
• Overseas infrastructure projects
• Urban areas with limited space or strict aesthetics requirements

With advantages like high strength, corrosion resistance, hygiene, and easy installation, modular composite underground water tanks have become the preferred choice for modern water supply and fire protection systems.
