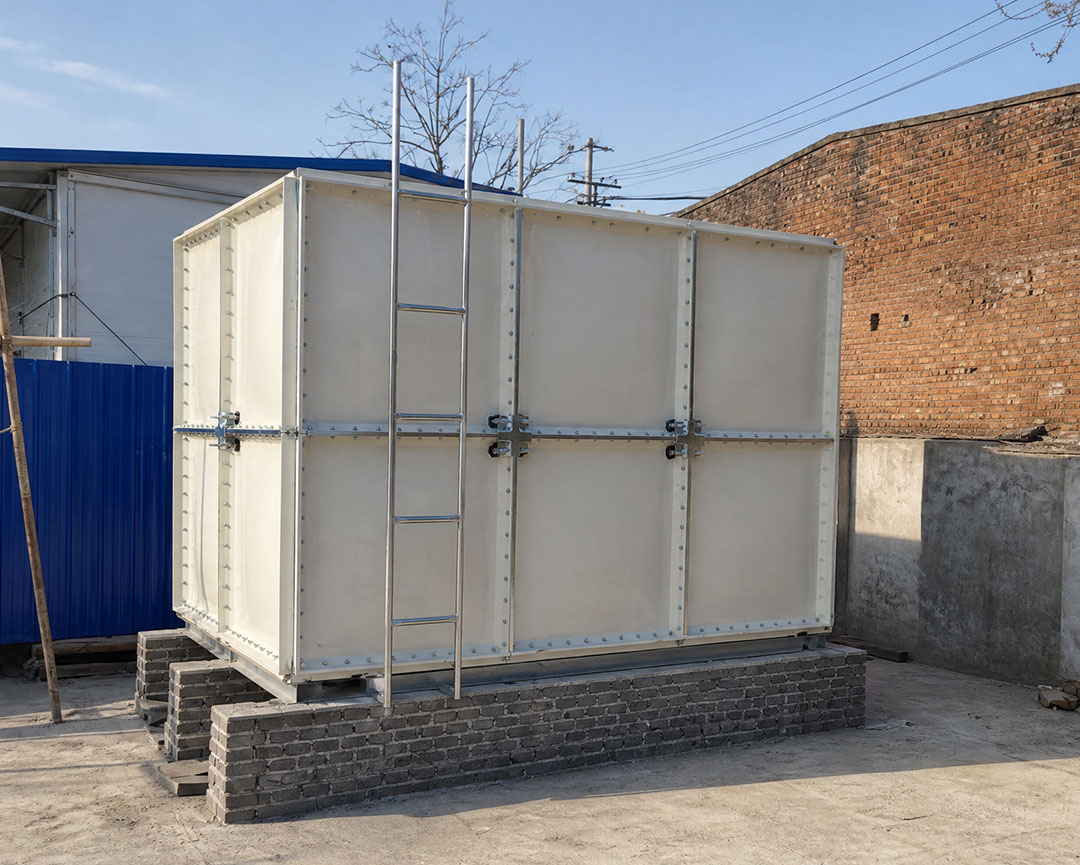

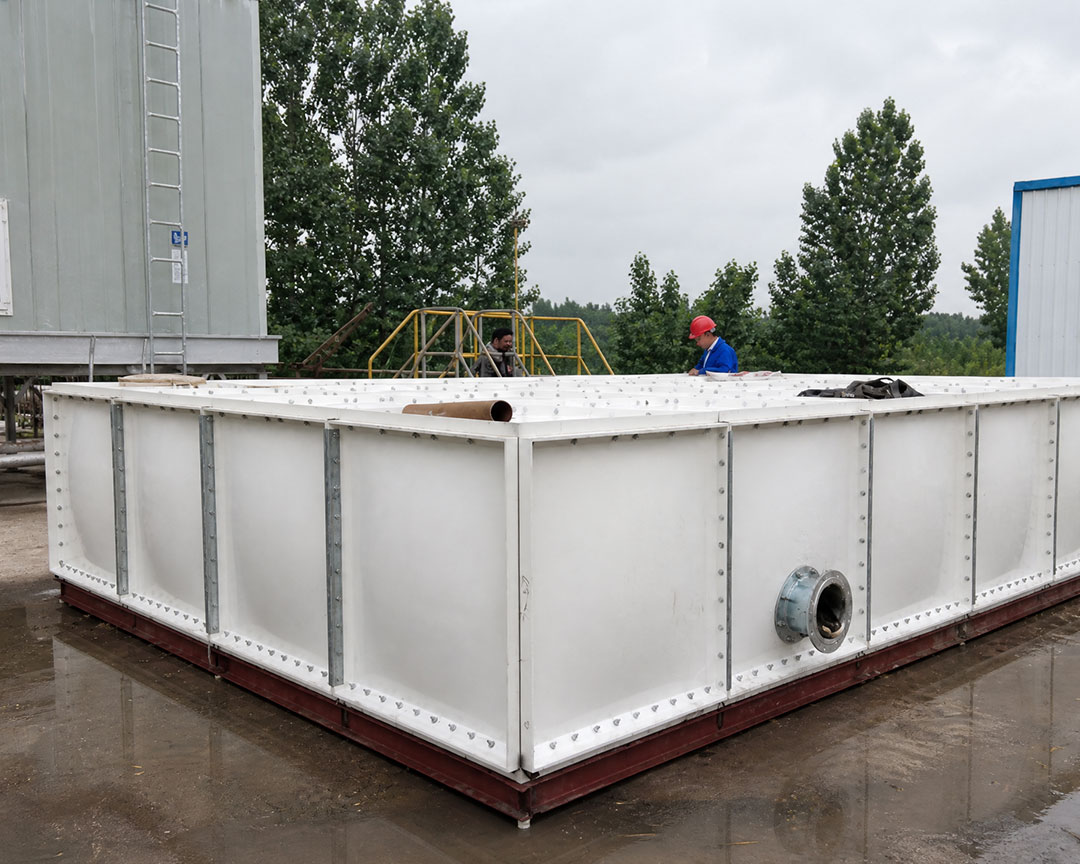

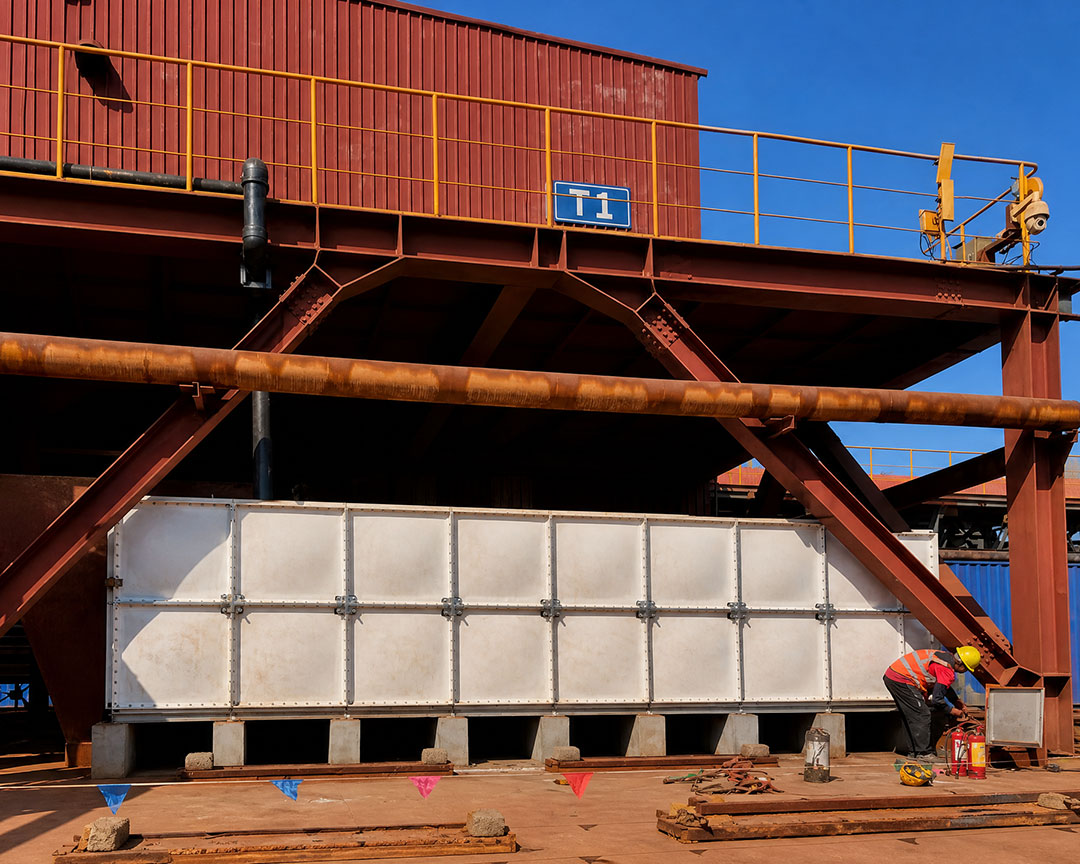

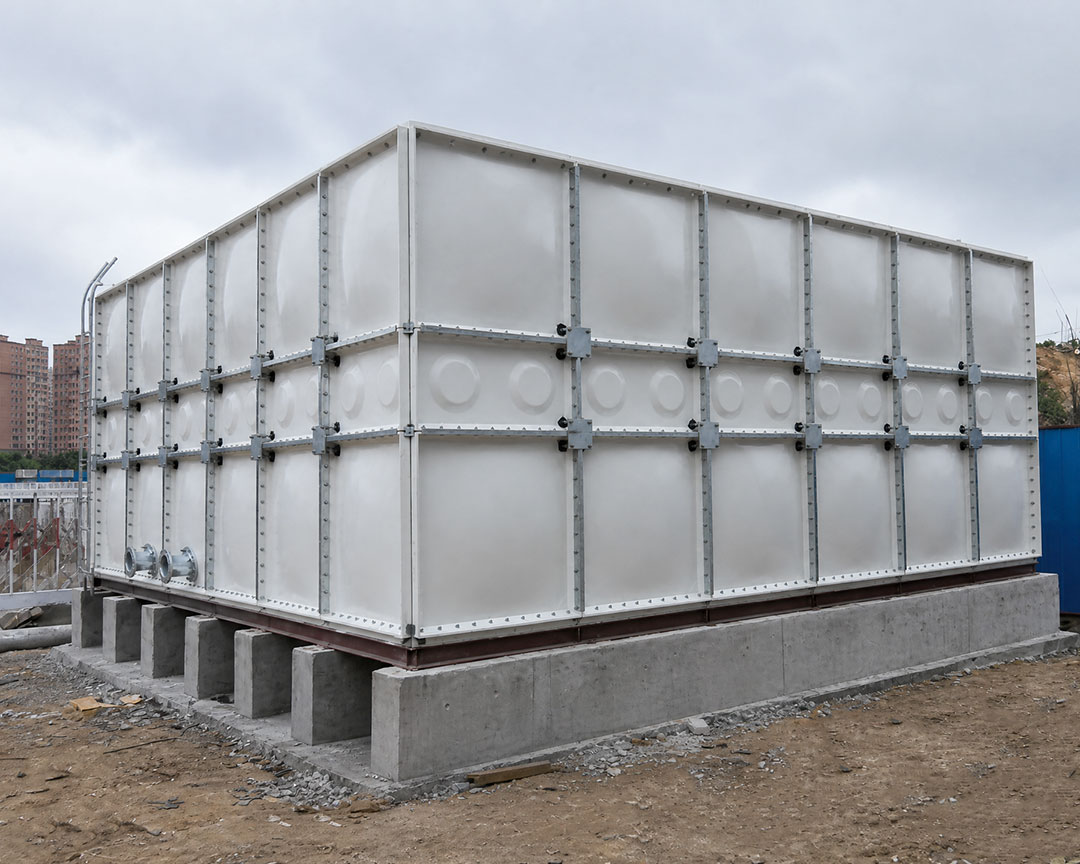

GRP Fire Water Tank for Factory Fire Protection Systems
FRP modular fire water tanks provide reliable emergency water storage solutions for factories and industrial facilities.
With excellent corrosion resistance, lightweight structure, and easy installation, they are ideal for tropical and coastal regions.
Key Points Tag :
The development of the global economy relies heavily on industrial growth. However, industrial clusters and manufacturing capabilities are unevenly distributed worldwide and continue to shift due to economic development, industrial upgrading, and labor cost changes. Industrial parks, manufacturing plants, and logistics centers are the core facilities of modern industrial systems. As a fundamental part of production safety, fire protection systems are essential, and they rely on reliable emergency fire water storage solutions.

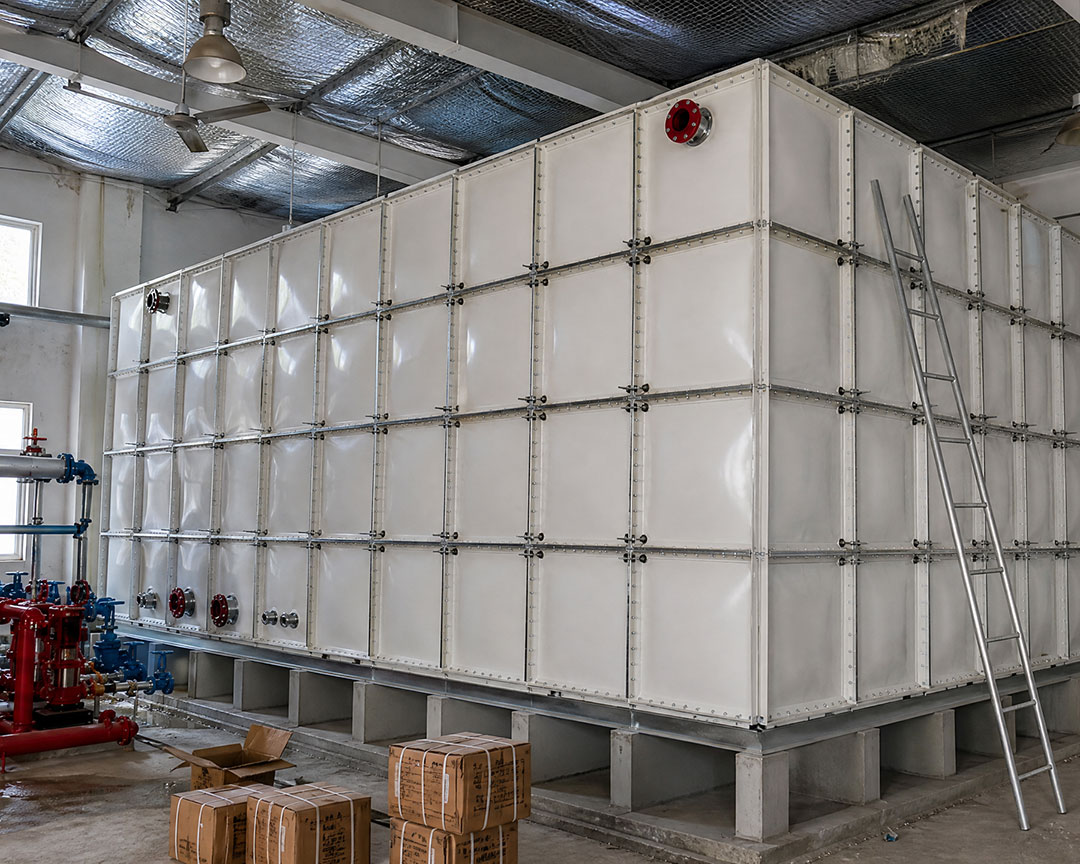

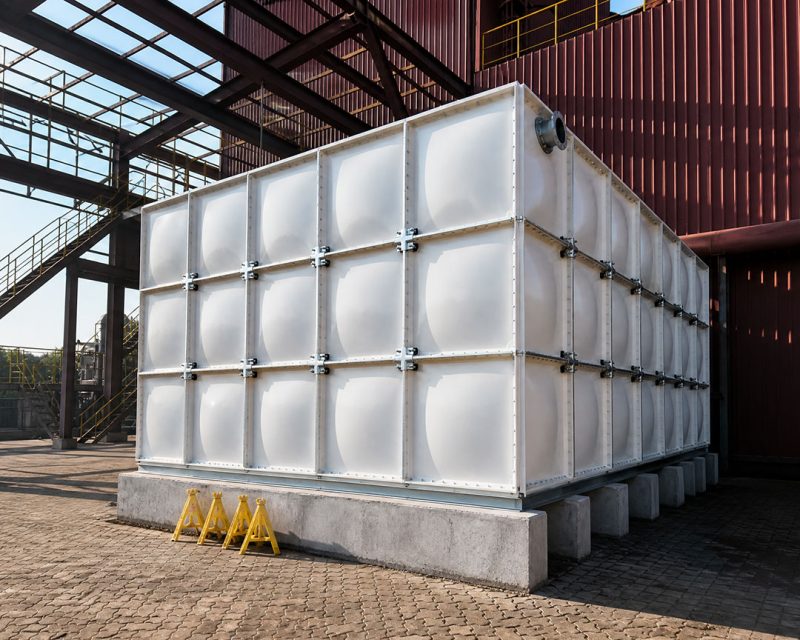

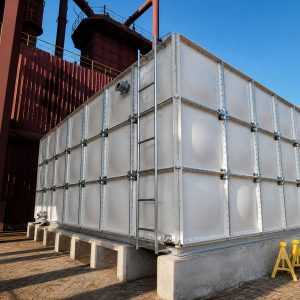

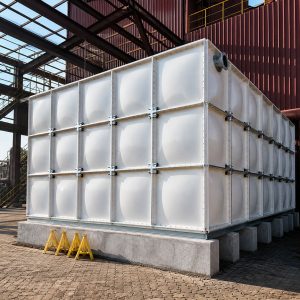

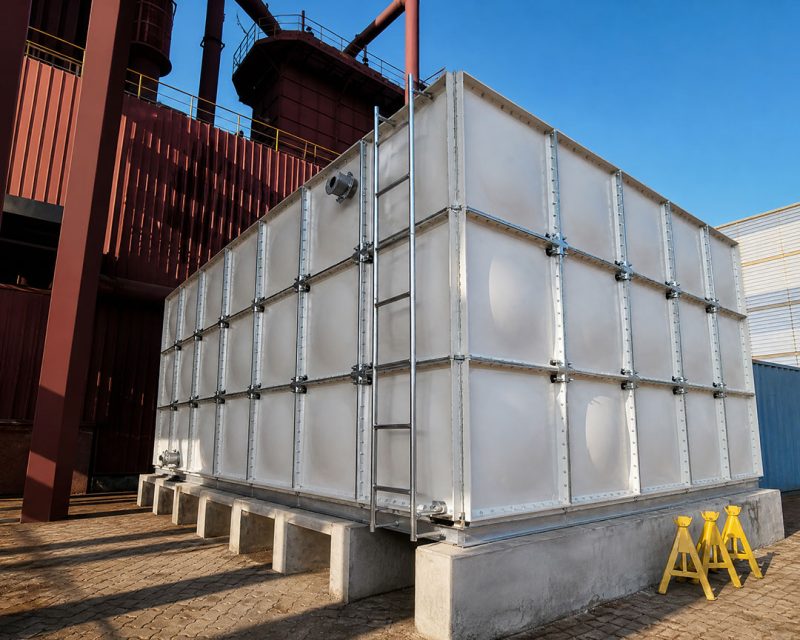

Fire Emergency Water Tank
Provides reliable fire water storage solutions for factories, warehouses, and industrial facilities, featuring corrosion resistance, easy installation, and stable operation.

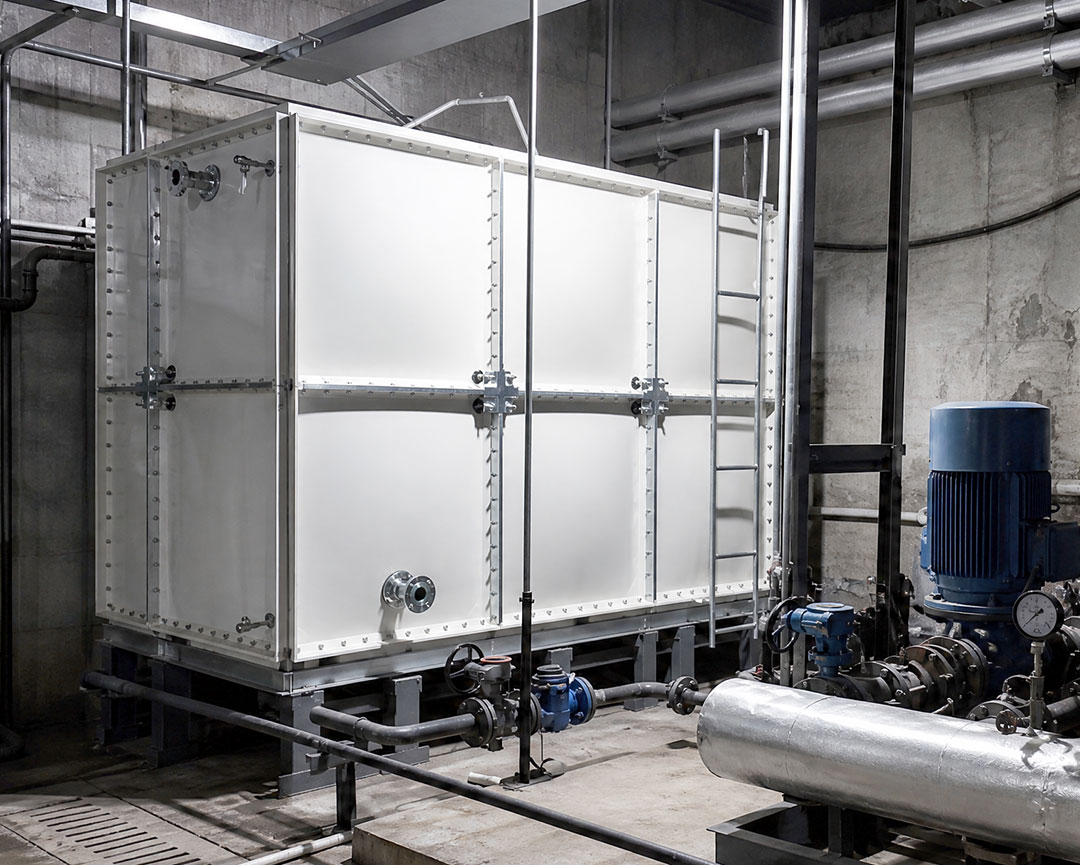

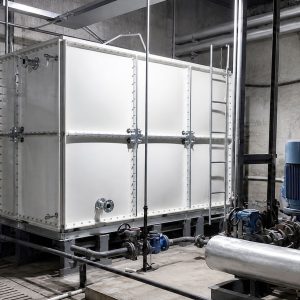

Modular Industrial Circulation Water Tank
Designed for manufacturing, energy, and industrial applications, with customized solutions available for cooling water circulation, process water, and industrial water storage needs.

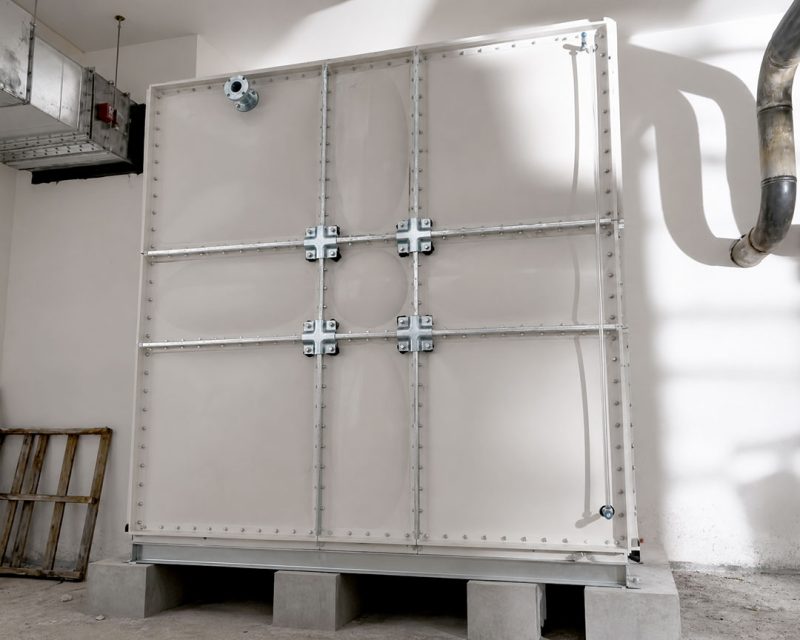

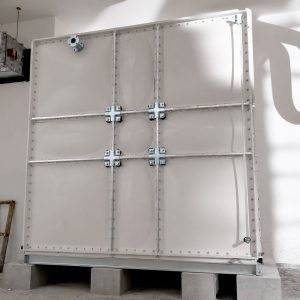

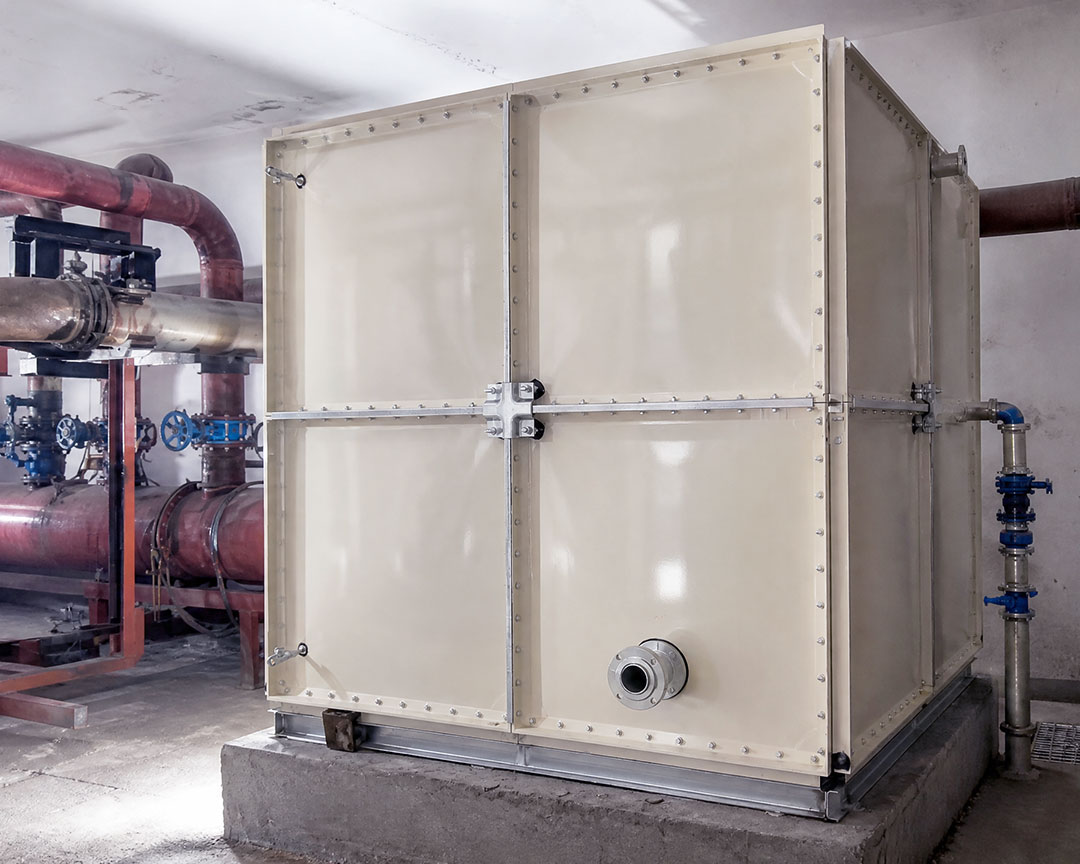

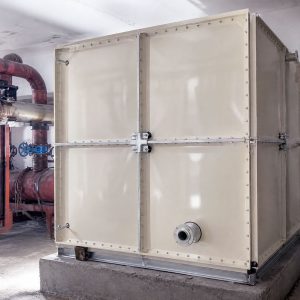

Square Domestic Water Tank
Manufactured with safe and durable materials, suitable for residential buildings, hotels, schools, and commercial facilities, providing reliable storage for daily water supply.
Fire emergency water tanks provide a stable and reliable water supply for fire pumps, fire hydrant systems, and automatic fire suppression systems during emergencies, ensuring effective firefighting operations when a fire occurs.
I. The Preferred Modular Fire Water Tank Solution for Tropical Regions
Southeast Asia, India, Latin America, and Africa are located in tropical or subtropical regions, where high temperatures, high humidity, heavy rainfall, and coastal salt spray are common environmental conditions.
Although stainless steel and galvanized steel water tanks also provide good durability, newly established factories often focus more on fast installation, cost control, durability, and rapid production start-up. Therefore, FRP water tanks have become a popular choice in these regions due to their balanced performance, economical investment, and convenient installation.
1. Excellent Corrosion Resistance for Tropical and Humid Environments
Countries around the equator generally experience tropical climates with:
- High temperatures
- High humidity
- Heavy rainfall
- Strong coastal salt spray exposure
These environmental factors can significantly accelerate the corrosion of metal materials.
Traditional steel water tanks may face problems during long-term operation, including:
- Surface corrosion
- Aging of protective coatings
- Corrosion at welded joints
- Increased maintenance costs
FRP (Fiberglass Reinforced Plastic) water tanks have excellent corrosion resistance and can effectively withstand humid and corrosive environments.
2. Suitable for Newly Built Factories and Industrial Projects in Developing Countries
For projects with limited budgets, restricted construction conditions, and tight schedules, low-cost and fast installation are key considerations.
Taking Southeast Asian factory projects as an example, many sites may face:
- Limited factory space
- Narrow construction access
- Difficult transportation to remote areas
- Restrictions on large lifting equipment
Modular FRP water tanks adopt a sectional structure with the following advantages:
- Lightweight individual panels
- Manual handling and installation possible
- No need for large lifting equipment
- Shorter construction period
For many overseas buyers, modular design significantly reduces transportation and installation difficulties.
3. Comparison of FRP, Hot-Dip Galvanized Steel, and Stainless Steel Water Tanks
| Comparison Item | FRP/GRP Water Tank | Q235 Hot-Dip Galvanized Steel Water Tank | SUS304/SUS316 Stainless Steel Water Tank |
|---|---|---|---|
| Main Material | Fiberglass + resin composite material | Q235 carbon steel sheet + hot-dip galvanized coating | SUS304/SUS316 stainless steel |
| Material Cost | Medium to high | Low | Highest |
| Initial Purchase Cost | Economical | Most economical | High |
| Corrosion Resistance | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐⭐ |
| Structural Strength | ⭐⭐⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ |
| Weight | Lightweight | Relatively heavy | Medium |
| Transportation Cost | Lower | Medium to high | Medium |
| Maintenance Cost | Very low | Medium | Very low |
| Long-Term Comprehensive Cost | Low | Medium | Higher |
| Suitability for Tropical Coastal Environments | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐⭐ |
| Fire Water Storage Application | Very suitable | Very suitable | Suitable |
| Typical Applications | Coastal factories, industrial fire protection, chemical projects | Factory fire protection, municipal water storage, industrial applications | Hospitals, food industries, potable water systems |
II. Cost Advantages of FRP Fire Water Tanks
1. Material Cost Advantage
FRP water tanks are mainly manufactured from fiberglass and resin composite materials. Compared with stainless steel water tanks, FRP tanks provide better overall cost control while maintaining sufficient structural strength.
They offer advantages in:
- Purchase cost
- Transportation cost
- Maintenance cost
In addition, depending on structural strength requirements, the thickness of FRP panels may vary. In many applications, the overall cost of FRP water tanks can be close to hot-dip galvanized steel water tanks.
For large-capacity fire water storage projects, such as:
- 100 m³
- 200 m³
- 500 m³
FRP solutions can provide excellent economic value.
2. Transportation Cost Advantage
For exported projects in Southeast Asia and other overseas markets, transportation cost is an important consideration.
FRP modular water tanks feature:
- Lightweight structure
- Compact packaging
- High container loading efficiency
- Lower ocean freight costs
Compared with large welded steel tanks, FRP modular tanks are more suitable for international transportation.
III. Installation Process of Modular FRP Fire Water Tanks
1. Foundation Preparation
Before installation, a concrete foundation should be prepared according to the tank dimensions.
Foundation requirements:
- Flat and level surface
- Sufficient load-bearing capacity
- Accurate leveling according to installation requirements
A properly prepared foundation helps prevent deformation during long-term operation.
2. Bottom Panel Installation
The installation starts with the bottom panels of the water tank.
Installation steps:
- Place sealing materials
- Install bottom FRP panels
- Adjust panel alignment and level
- Tighten connection bolts
The quality of bottom panel installation directly affects the overall sealing performance of the water tank.
3. Side Panel and Reinforcement Structure Installation
Side panels are installed layer by layer according to the design drawings.
The installation includes:
- FRP panel connections
- Internal tie rod installation
- External reinforcement fixing
- Dimension adjustment
The modular installation method improves construction efficiency and reduces installation difficulty.
4. Accessory Installation
After completing the main tank structure, install the related accessories:
- Inlet pipe
- Outlet pipe
- Overflow pipe
- Drain pipe
- Manhole cover
- Water level indicator
- Ladder system
5. Water Filling Test
After installation, the water tank should undergo a water filling test.
Inspection items include:
- Panel connection points
- Sealing performance
- Tank deformation
- Leakage inspection
After confirming stable operation and no leakage, the water tank can be connected to the fire protection system and put into service.
Reference for Matching Water Tank Panel Thickness and Height Values
| Height | Bottom Board | Side 1 | Side 2 | Side 3 | Side 4 | Side 5 | Top board |
|---|---|---|---|---|---|---|---|
| 5000 mm | 20 mm | 20 mm | 16 mm | 14 mm | 12 mm | 10 mm | 5 mm |
| 4500 mm | 20 mm | 20 mm | 16 mm | 14 mm | 12 mm | 10 mm | 5 mm |
| 4000 mm | 18 mm | 18 mm | 14 mm | 12 mm | 10 mm | 5 mm | |
| 3500 mm | 16 mm | 14 mm | 12 mm | 10 mm | 8 mm | 5 mm | |
| 3000 mm | 14 mm | 14 mm | 12 mm | 8 mm | 5 mm | ||
| 2500 mm | 12 mm | 12 mm | 10 mm | 8 mm | 5 mm | ||
| 2000 mm | 12 mm | 10 mm | 8 mm | 5 mm | |||
| 1500 mm | 10 mm | 10 mm | 8 mm | 5 mm | |||
| 1000 mm | 10 mm | 10 mm | 5 mm |
- FRP/GRP panels are manufactured using standard molds. Common panel sizes include 1×1 m, 1×0.5 m, and 0.5×0.5 m.
- The maximum tank height is 5 meters. For tanks exceeding 4 meters in height, external C-channel steel reinforcement is required.
- Panel thickness varies according to the tank height and pressure resistance requirements, depending on the overall tank design.
Water Tank Structure
- Panels (including bottom panel, wall panels, roof panel, and manhole cover);
- Internal Components (including internal ladder, tie rods, supports, flanges, and rubber seals);
- External Components (including external ladder, angle iron, tie plates, bolts, and nuts);
- Base (Concrete beam,C-channel steel).
Physical Properties
| Physical Property | Standard Requirement | Test Result |
|---|---|---|
| Tensile Strength | ≥60 MPa | 66.5 MPa |
| Flexural Strength | ≥120 MPa | 184 MPa |
| Flexural Modulus | ≥10 GPa | 12.8 GPa |
| Barcol Hardness | ≥60 HBa | 63.9 HBa |
| Water Absorption | ≤0.5% | 0.13% |
| Glass Fiber Content | ≥25% | 29% |
Application Scenarios
- Civil Use:
- Water storage for residential buildings, hotels, schools, and hospitals
- Supports domestic water supply and fire-fighting systems
- Industrial Use:
- Cooling water, circulating water, process water, and wastewater treatment in factories and plants
- Agricultural Irrigation:
- Large-scale water storage for irrigation systems
- Fiberglass tanks are durable, hygienic, and cost-effective for modern agricultural projects
- Other Uses:
- Potable water, seawater, chemical storage, hot water, rainwater harvesting, reverse-osmosis water tanks, swimming pool balance tanks, and industrial process/storage tanks
| Product Name | Fiberglass Water Tank, FRP Water Tank, GRP Water Tank |
|---|---|
| Material | FRP, GRP |
| Grade | Food Grade |
| Origin | China |
| Color | white |
| Panel Size | 0.5*0.5m, 1*0.5m, 1*1m, 2*1m |
| Panel thickness | From 5mm to 24mm |
| Certification | ISO3834, ISO9001 |
| HS Code | 730990 |
| Capacity | 1000Litres -Infinity |
| Foundation | Concrete Foundation, U-Steel Bottom Bas |
| Installation | Sitting Type, Welding |
| Production Capacity | 2000Ton/Month |
| Transport Package | Pallet Box, Plywood Pallet, Steel Frame |
| Sample | Provided |
| After-Sale Service | Online Technical Support |
Be the first to review “GRP Fire Water Tank for Factory Fire Protection Systems”
Professional Design Capability
Packing & Shipping
- The products are packaged using iron frames or plywood boxes to ensure they are not damaged during land transportation and shipping.
- Each individual package is covered with a waterproof film to prevent exposure to moisture during long-term sea transportation.
- Accurately label all panels and accessories to facilitate quick installation by customers.
Water Tank Panel Packaging 1
Plywood Box
Water Tank Panel Packaging 2
Steel Frame Support
Water Tank Panel Packaging 3
HDG
Water Tank Panel Packaging 4
GRP/FRP
Large Components
Loose Packing
Small Accessories Packaging
Plywood Box
Full Container Shipment
Steel Frame Packaging
Full Container Shipment
Simple Packaging
Qualification & Certification
Our water tank products are designed and manufactured in strict accordance with domestic and international standards and have passed multiple industry-recognized certifications, including ISO 9001 Quality Management System certification, food-grade stainless steel material standards (SUS304 / SUS316), and drinking water safety-related certifications.
Delivery
- For standard water tank less than 200m3, it would be 3-5 days;
- For non-standard water tank and customized water tank according to client’s specific requirements, it would be 7 to 15 days.
- The final delivery time shall be subject to the actual order confirmation.
